ASUS IoT Tinker Board series is an ultra-small, single board computer (SBC) that offers exceptional performance, mechnical compatibility and reliability. It is the perfect platform for a diverse range of commercial, industrial and IoT applications.
Key Features
Superior Performance Powered by ARM Processor
Embedded with the powerful multi-core ARM-based processor, the Tinker Board series delivers significantly improved performance and energy efficiency when compared to other SBC boards in the industry. The ARM-based Mali GPU makes it ideal for wide range of visual and audio applications such as digital signage, self-service kiosk, gaming, Al vision computing, object and face recognition, and more.
Industry-Leading Operating System Support
Engineered to run on both Debian and Android, Tinker Board series ensures powerful performance, system stability and trusted security.
Accessories for Easy Expandability
The Tinker Board series is expandible with accessories including the ASUS Tinker 2 Fanless Aluminum Case, ASUS MIPI Converter Board and ASUS PoE Splitter Board, and more. The platform also offers ready-made solutions for enhanced convenience and functionality.
Comprehensive Documentation & Support Community
The Tinker Board series benefits from an abundance of trusted tried-and-tested resources; from detailed documentation, open-source code and a thriving user community, its support community is ready and waiting to accelerate the development of any project.
Example Use Cases

Smart City
- Surveillance
- Public ecurity
- Air Quality monitoring

Logistics & Warehouse
- Inventory Control
- Package Tracking
Compare the Tinker Board Series

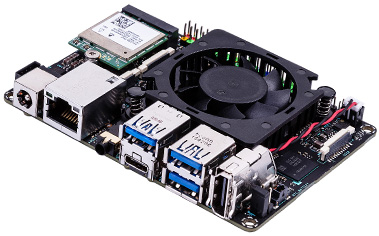

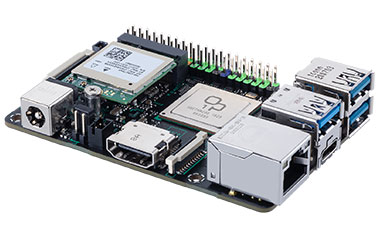

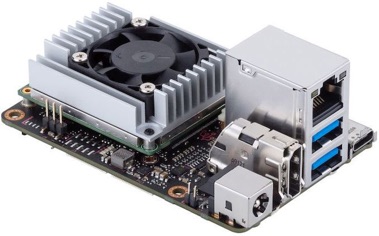

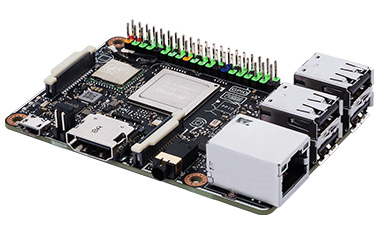

Model | Tinker Board R2.0 & Tinker Board S R2.0 | Tinker Board 2 & Tinker Board 2S | Tinker Edge T | Tinker Edge R |
![]() | ![]() | ![]() | ![]() | |
SoC | Rockchip RK3288-CG.W | Rockchip RK3399 | NXP i.MX 8M | Rockchip RK3399Pro |
GPU | Arm® Mali™-T760 MP4 GPU@ 600 MHz | Arm® Mali™-T860 MP4 GPU@ 800 MHz | GC7000 Lite | Arm® Mali™-T860 MP4 GPU @ 800 MHz |
Memory | Dual-CH LPDDR3 214GB | Dual-CH LPDDR4 214GB | Dual-CH LPDDR4 1 GB | Dual-CH LPDDR4 4GB (SYSTEM)+ LDPPR3 2GB (NPU) or Dual-CH LPDDR4 2GB (SYSTEM)+ LDPPR3 1GB (NPU) |
Storage | S Model Only: 16132GB eMMC* | S Model Only: 16132GB eMMC* | 8GBeMMC | 16GBeMMC |
1 x Micro SD (TF) card slot (push & pull) | 1 x Micro SD (TF) card slot (push & pull) | 1 x Micro SD (TF) card slot (push & pull) | 1 x Micro SD (TF) card slot (push & pull) | |
Operating System | Support Debian 10/ Android 11 | Support Debian 10/ Android 11 | Mendel | Support Debian 10/ Android 9 |
Dimension | 3.37″ x 2.125″ (85 x 56 mm) | 3.37″ x 2.125″ (85 x 56 mm) | 3.37″ x 2.125″ (85 x 56 mm) | Pico-lTX, 3.9″ x 2.8″ (100×72 mm) |
