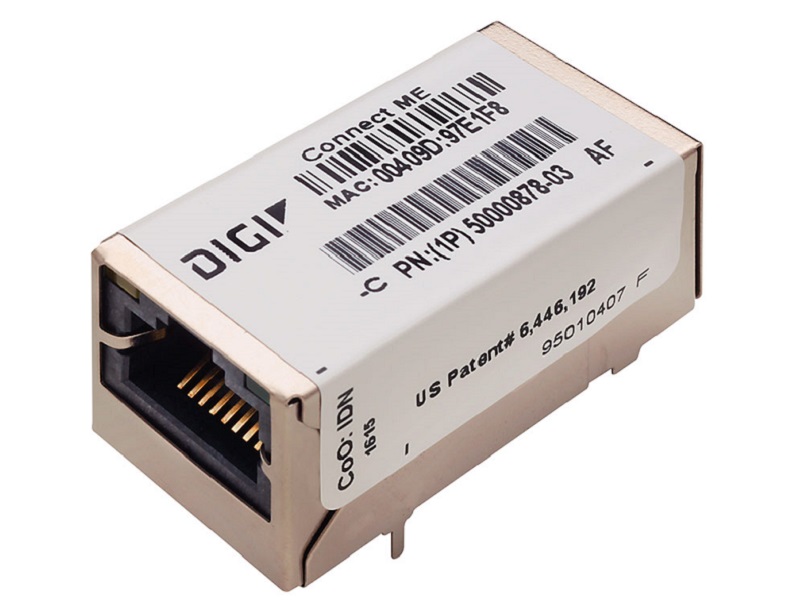

Digi Connect MEX
Product SKU: DC-ME-01T-C-P
DIGI CONNECT MESecure device server module with plug-and-play functionality and professional evelopment tools for custom applications The Digi Connect ME is a secure device server module that delivers complete and versatile embedded IPv6-ready network connectivity and strong standards-based encryption services such as SSL/SSH. Built on leading Digi 32-bit NET+ARM technology, the Digi Connect ME is cost effective and easy to use in existing and new product designs, while powerful enough to meet future product performance needs. The connector-style module is pin-compatible and interchangeable with the Digi Connect® Wi-ME, providing a direct migration path to a wireless solution without the traditional complexities of hardware and software integration work. Digi Connect ME is available pre-loaded with Digi plug-andplay firmware, which eliminates software development efforts by providing powerful and configurable IPv4/IPv6 device server functionality, including an easy-to-use web user interface and security features. Target applications include retail systems, security/access control, medical devices and building/industrial automation.
Features- Compact and secure 32-bit device server modules - Complete family of pin-compatible module solutions - Integrated 10/100 Mbit Ethernet interface - Strong enterprise-grade network security - Highly integrated low emission design (FCC Class B) - Extended and industrial operating temperature - Digi processor and WLAN technology for true long-term availability

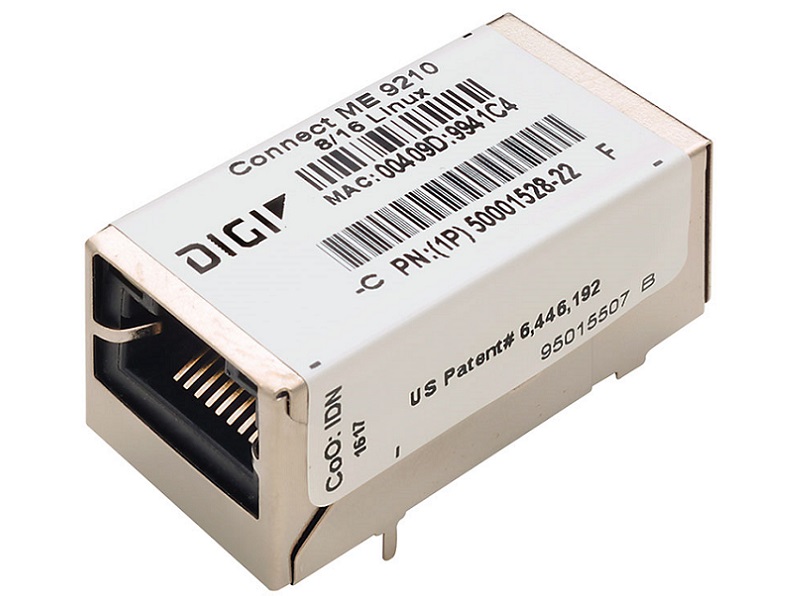

Digi Connect ME 9210X
Product SKU: DC-ME-Y413-LX-P
DIGI CONNECT ME 9210Ultra-compact high-performance embedded modules for M2M networking combine on-chip security The Digi Connect ME 9210 embedded module enables secure wired and wireless networking. Built on Digi’s powerful NS9210 ARM9 processor, the high-performance module allows customers to implement next generation network-enabled products. Additionally, the RJ-45 form factor is pin compatible with modules in the Digi Connect ME family. The module can provide future application-specific interface options through the programmable Flexible Interface Module (FIM), while keeping the main serial port or other key peripheral interfaces available. It is well-suited for more advanced core module applications by supporting up to ten shared GPIOs, external IRQs and an extended set of peripheral interface options. The Digi Connect ME 9210 features the development and operational benefits of Digi Remote Manager ®. This secure, highly-scalable platform seamlessly ties enterprise applications and remote devices together. Using Digi Remote Manager, customers can also easily configure, upgrade, monitor and troubleshoot their device from a centralized location.
Features- Integrated 10/100 Mbit Ethernet interface - Support for Digi Embedded Linux and Digi NET+OS - Industrial operating temperature System-on-Module - RJ-45 form factor compatible with Digi Connect ME - On-chip hardware encryption engine - Extended set of on-chip interfaces and signals - Power management modes - Low-emission design (FCC Class B)

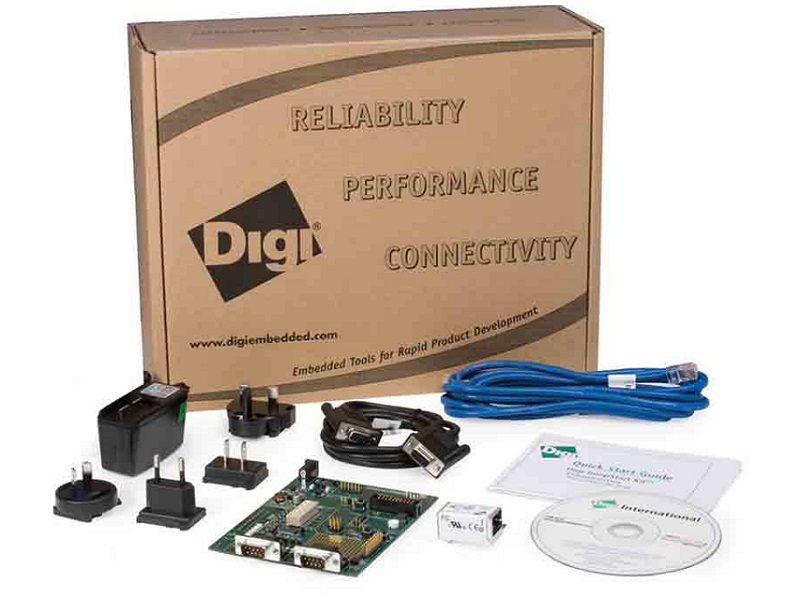

Digi Connect ME 9210 Digi JumpStart KitX
Product SKU: DC-ME-9210-LX-P
Digi Connect ME 9210 Digi JumpStart Kitfor Digi Embedded Linux, w/Eclipse-based Digi ESP IDE, LiveDVD, and installation and setup support package What's in the box: Quick start guide Digi Connect ME module w/JTAG - 75 MHz NS9210, 4 MB Flash, 8 MB SDRAM Digi JumpStart Kit development board - RS-232 serial port, GPIO screw terminal, test points, application connectors, prototyping area, RS-232 console port (JTAG), 9-30VDC power supply Digi Embedded Linux DVD - Digi Embedded Linux, Digi ESP IDE, source code, boot loader source code, sample code Documentation and development board schematics Power supply and accessories - External wall power supply with adapters, Ethernet cable, serial cable

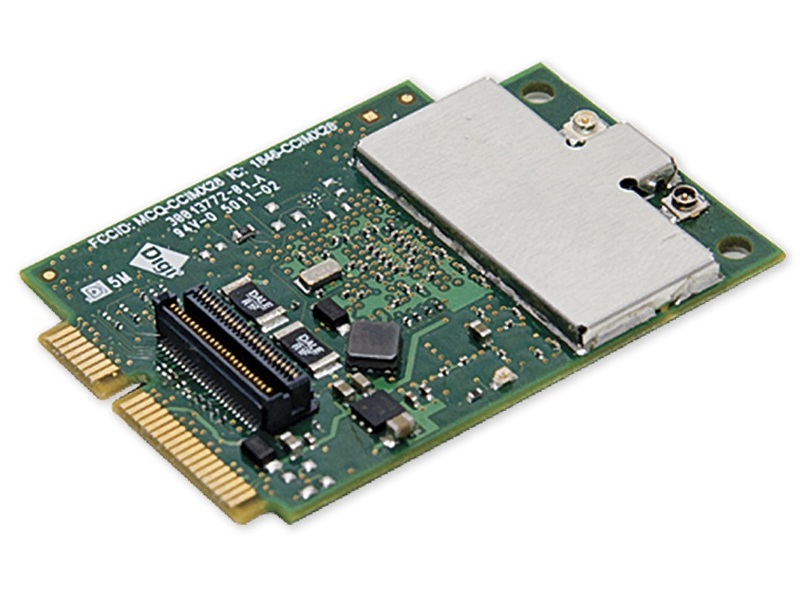

DIGI CONNECTCARD FOR i.MX28X
Product SKU: CC-MX-PF47-ZK-P
DIGI CONNECTCARD FOR i.MX28Cost-effective small-footprint System-on-Module solution delivers performance, lowpower operation and integrated 802.11a/b/g/n, Bluetooth 4.0 and Ethernet connectivity Based on the NXP i.MX28 processor family, the ConnectCard for i.MX28 is an ideal embedded platform solution for connected applications in medical and healthcare, energy, transportation and industrial/building automation. It offers easy design integration and unique peripheral/ interface flexibility in an extremely compact and cost-effective form factor. This module is suitable for a wide range of different devices, including battery powered product designs. The module is equipped with a highly integrated 32-bit ARM core running at up to 454 MHz, on-chip power management, dual Ethernet and 802.11a/b/g/n networking options, Bluetooth 4.0 connectivity, dual FlexCAN options, GPIO, ADC, UART, USB high-speed, SPI, I2C, I2S, 1-Wire, PWM and JTAG/ETM. The Digi JumpStart Kit® for Digi Embedded Linux provides a complete turnkey embedded development solution allowing immediate and successful product development with accelerated time-to-market and reduced design risk.
Features- Cost-effective design in compact form factor - 32-bit ARM processor at up to 454 MHz - Single/dual 10/100 Ethernet connectivity options - Pre-approved 802.11a/b/g/n Wi-Fi + Bluetooth 4.0 - Includes Wi-Fi® Access Point mode + Wi-Fi Direct™ - Support for Bluetooth 3.0 + HS and Bluetooth LE - Ready for Cisco CCX and Wi-Fi Logo certification - Digi Embedded Linux platform - Digi Remote Manager ® enabled - Includes complete Digi BSP source code - Long-term product availability - Additional ZigBee®, 802.15.4, cellular and satellite connectivity options (off-module)

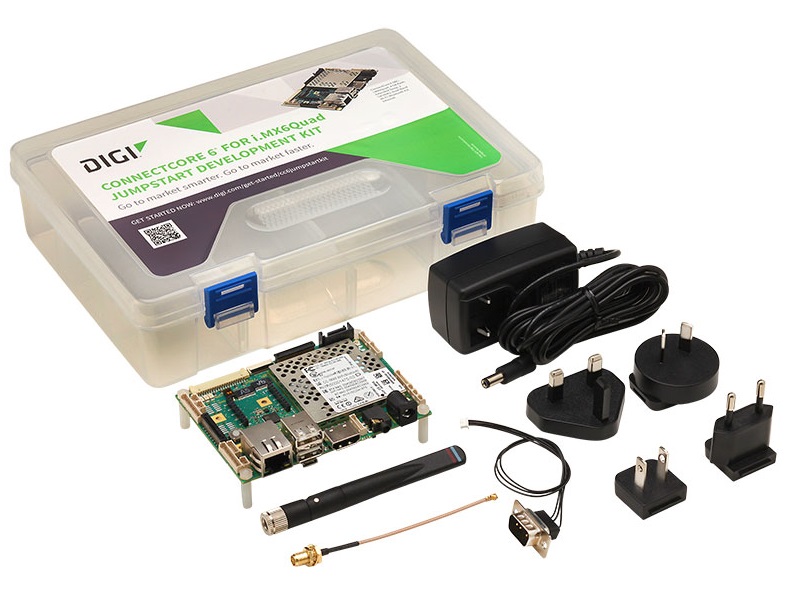

Digi ConnectCore 6X
Product SKU: CC-WMX6-KIT-P
DIGI CONNECTCORE 6The ConnectCore® 6 is an ultra-compact and highly integrated system-on-module solution based on the NXP i.MX6 Cortex-A9 processor family. With processor speeds up to 1.2 GHz and fully pin-compatible single-/dual-/quad-core variants, the ConnectCore 6 offers a truly future-proof platform solution with scalable performance and pre-certified wireless 802.11 a/b/g/n and Bluetooth 4.0, including Bluetooth Low Energy, connectivity. Its low-profile, surface-mount design maximizes integration flexibility and significantly reduces design risk in a highly cost-effective, reliable form factor with optimized heat dissipation capabilities even in the most demanding quadcore system configurations. The ConnectCore 6 comes with a complete Board Support Package (BSP) for both Linux and Android platforms supporting secure remote management and web services through Digi Remote Manager ®
Features-Includes SBC with ConnectCore 6 module (i.MX6Quad, 1.2 GHz), 4GB flash, 1GB DDR3, 802.11a/b/g/n, Bluetooth 4.0, and Kinetis Microcontroller Assist. -Software for Yocto Linux and Android development -Quick Start Guide -Power supply -Cable accessories
Digi ConnectCore 6 PLUSX
Product SKU: CC-WMX6P-KIT
DIGI CONNECTCORE 6+NXP i.MX6Plus based surface-mount module solution with scalable, quad-core performance and integrated wireless The Digi ConnectCore® 6+ is an ultra-compact and highly integrated system-on-module solution based on the NXP i.MX6Plus Cortex-A9 processor family. With processor speeds up to 1.2 GHz and fully pin-compatible dual-/quad-core variants, the ConnectCore 6+ offers a truly future-proof platform solution with scalable performance and pre-certified wireless 802.11a/b/g/n/ac and Bluetooth 5, including Bluetooth Low Energy, connectivity. Its low-profile, surface-mount design maximizes integration flexibility and significantly reduces design risk in a highly cost effective, reliable form factor with optimized heat dissipation capabilities even in the most demanding quad-core system configurations. Integrated cloud integration as part of the Digi Yocto Linux and Android software platform support offers secure remote management and web services capabilities through the scalable Digi Remote Manager®.
Features- Scalable Cortex-A9 multi-core performance - Independent Cortex-M0+/Cortex-M4 Microcontroller Assist™ subsystem - Cost-effective, reliable, low-profile surface-mount module form factor - Pre-certified 802.11a/b/g/n/ac and Bluetooth 5 - Smart Power Management Architecture with PMIC - Android and Yocto Project Linux software platform support - Reliable design with IEC 60068 and HALT verification - Dedicated on-module security + authentication controller - Designed for long-term availability

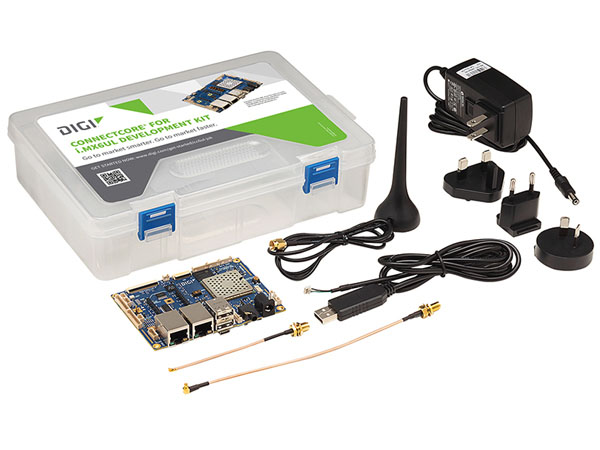

Digi ConnectCore 6ULX
Product SKU: CC-WMX6UL-KIT-P
ConnectCore for i.MX6ULThe Industry’s smallest wireless low-power NXP i.MX6UL System-on-Module platform to build your intelligent andstrongsecure connected devices The ConnectCore® for i.MX6UL module delivers a secure and extremely cost-effective connected System-on-Module platform that is slightly bigger than a postage stamp. Its patent-pending Digi SMTplus™ surface mount form factor allows you to choose simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a versatile LGA option for ultimate design flexibility with access to virtually all interfaces. Built on the NXP i.MX6UL application processor, the module is the intelligent communication engine for today’s secure connected devices. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 4.2 connectivity. Embedded device security is a critical design aspect for the growing number of connected applications (“IoT”) and the ConnectCore for i.MX6UL removes the implementation barriers by providing you with Digi TrustFence, a fully integrated secure module platform with complete Linux software support.
Features- Stamp-sized, secure, connected System-on-Module platform - NXP i.MX6UL-2, Cortex-A7 @ 528 MHz - Up to 2 GB NAND flash, up to 1 GB DDR3 - Patent-pending low-profile Digi SMTplus™ form factor - ntegrated Microcontroller Assist™ for 30 µA ultra-low power modes - Pre-certified 802.11a/b/g/n/ac + Bluetooth 4.2 option - Integrated dual 10/100 Ethernet connectivity - Exclusive Digi TrustFence™ embedded device security framework - Turnkey and royalty-free embedded Linux software platform - Industrial operating temperature and reliability
|CC-WMX-JN58-NE||i.MX6UL-2, 528 MHz, Industrial Temp, 256 MB SLC NAND, 256 MB DDR3, Dual 10/100 Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.1|
|CC-MX-JN58-Z1||i.MX6UL-2, 528 MHz, Industrial Temp, 256 MB SLC NAND, 256 MB DDR3, Dual 10/100 Ethernet|
|CC-WMX6UL-START||ConnectCore for i.MX6UL Starter Board, 87 x 63 mm, Industrial temp, 256 MB SLC NAND, 256 MB DDR3, single 10/100 Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2, PCB antenna, USB , UART, microSD, Pi HAT and Grove connectors, power (USB + header), and accessories|
|CC-WMX6UL-KIT||ConnectCore for i.MX6UL SBC, Pico-ITX (100 x 72 mm), Industrial Temp, 256 MB SLC NAND, 256 MB DDR3, Dual 10/100 Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2, XBee socket, cellular connectivity support via PCI Express Mini Card, SIM, NFC, microSD, USB Host, USB OTG, UART, DualCAN, SPI, I2C, LVDS, camera, antenna connector, battery connector, power supply, and accessories|

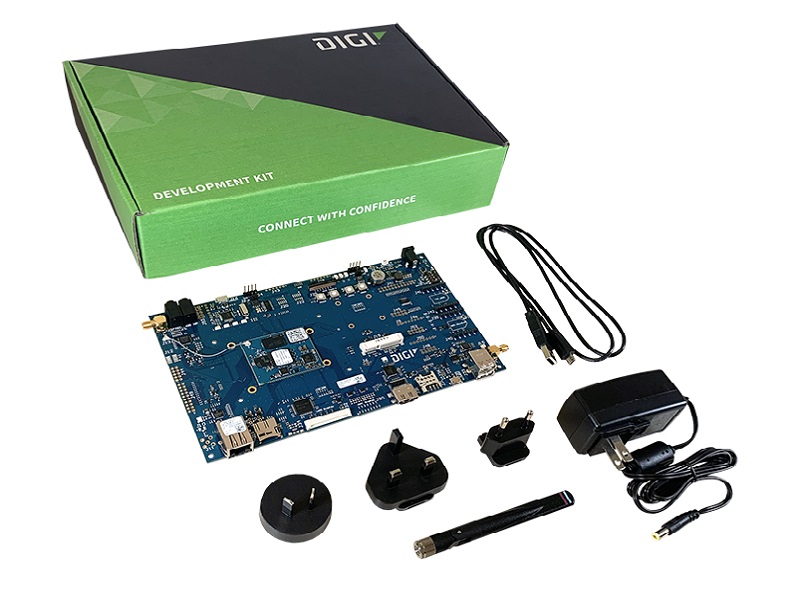

Digi ConnectCore 8M Nano Development KitX
Product SKU: CC-WMX8MN-KIT
Digi ConnectCore 8M Nano SOM based on NXP i.MX 8M NanoEmbedded system-on-module based on the NXP i.MX 8M Nano processor; designed for longevity and scalability in industrial IoT applications Industrial i.MX 8M Nano quad/dual-core System-on-Module Digi SMTplus® form factor (40 mm x 45 mm) for ultimate reliability and design freedom Power management with both hardware and software support for low-power designs Multi-display and camera capabilities with hardware acceleration Pre-certified dual-band 802.11a/b/g/n/ac 1x1 and Bluetooth® 5 connectivity Seamless cellular modem and Digi XBee® integration Cloud and edge-compute services integration Built-in device security, identity and privacy with Digi TrustFence® Remote monitoring and management with Digi Remote Manager® Yocto Project Linux support
FeaturesThe kit includes: Digi ConnectCore® 8M Nano development board Console port cable Dual-band antenna Power supply and accessories Reference designs for LVDS, HDMI and CAN-FD

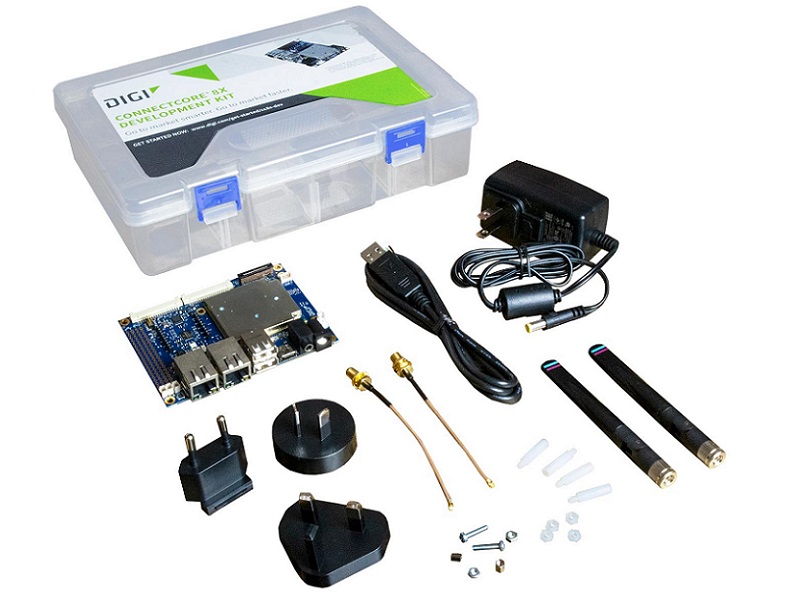

Digi ConnectCore 8X KITX
Product SKU: CC-WMX8-KIT

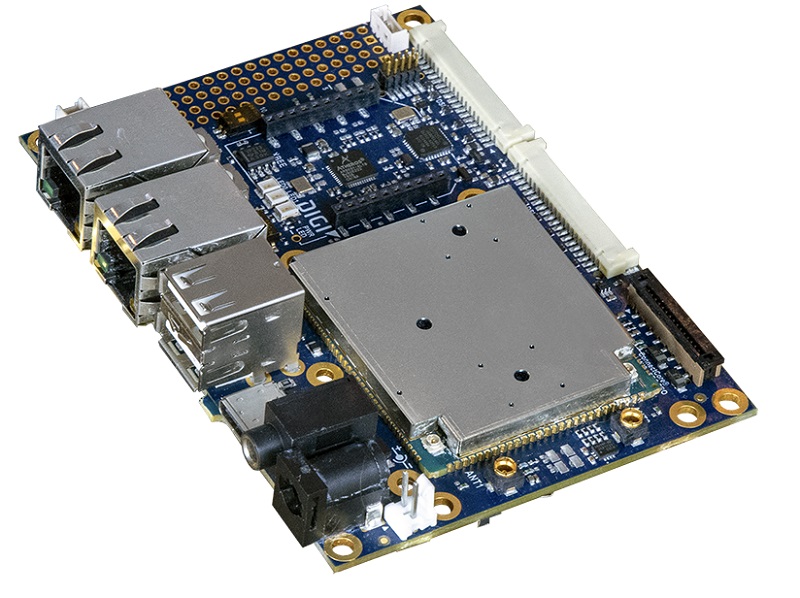

DIGI CONNECTCORE 8X SBC PRO DEVELOPMENT KITDesign and build your connected products on an industrial and productization-ready single board computer platform The Digi ConnectCore® 8X SBC Pro development kit delivers a powerful, secure and cost-effective single board computer with complete support for Linux and Android. Digi ConnectCore 8X SBC Pro development kit reduces timeto-market by virtually eliminating the traditional risk, effort and complexity of custom board designs without sacrificing flexibility or capabilities. VERSATILE CONNECTIVITY ACROSS INDUSTRIES Streamline the process to design, build, test and deploy secure, industrial-ready products with the Digi ConnectCore 8X SBC Pro development kit. A range of applications support healthcare, transportation, energy, utility, agricultural, building automation and other industrial markets. The compact form factor integrates an on-board dualband antenna option, USB connectivity and Digi XBee® RF connector. Additional features include cellular connectivity options, multi-display/camera and audio support, external storage and expansion connectors. Digi also offers optional services including cellular integration support, certification assistance and custom design services to get your product to market faster and smarter.
FeaturesTHE KIT INCLUDES: - Digi ConnectCore® 8X SBC Pro with dual-ethernet, 802.11a/b/g/n/ac and Bluetooth 5 - Console port cable - Two dual-band antennas - Power supply and accessories FEATURES AND BENEFITS - Industrial i.MX 8X quad-core SOM and SBC platform family - Compact Pico-ITX form factor (100 mm x 72 mm) - Power management with both hardware and software support for low-power designs - Multi-display and camera capabilities with hardware acceleration - Pre-certified dual-band 802.11a/b/g/n/ac 2x2 and Bluetooth 5 connectivity - Seamless cellular modem and Digi XBee3® integration - Cloud and edge compute services integration - Built-in Digi TrustFence® device security - Yocto Project Linux and Android support

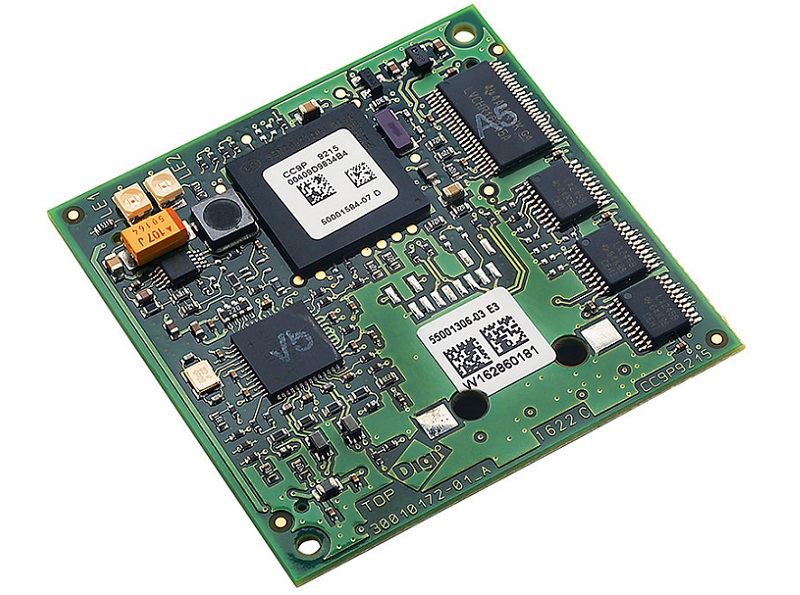

Digi ConnectCore 9P 9215X
Product SKU: CC-9P-V502-C-P
DIGI CONNECTCORE9P 9215Compact ARM9-based core modules combine main processing functionality and unique interface flexibility with secure wired and wireless network connectivity The ConnectCore 9P 9215 module delivers a powerful, secure and compact network-enabled 150 MHz NS9215 processor solution with ARM9 core, a rich set of peripherals and unique interface flexibility. With leading features like an on-chip AES encryption engine, two independent and fully programmable flexible interface modules and Digi’s patented dynamic power management options, it is the ideal solution for today’s networked embedded applications. Digi’s own NET+ARM processor technology also delivers the true longterm availability that is a key requirement for embedded applications. ConnectCore 9P 9215 modules feature the design, development and administrative advantages offered by Digi Remote Manager. This secure, highly-scalable platform seamlessly ties enterprise applications and remote devices together.
Features- Compact, interchangeable 150 MHz ARM9 modules - Integrated 10/100 Mbit Ethernet interface - 802.11a/b/g wireless LAN with WPA2/802.11i security - Rich set of peripheral connectivity options - 2 programmable interface controllers (FIM) - Industrial/extended temperature range - Pre-certified low-emission design - Digi processor and WLAN technology for true ong-term availability - Seamless migration path to Digi NET+ARM system-on-chip solution

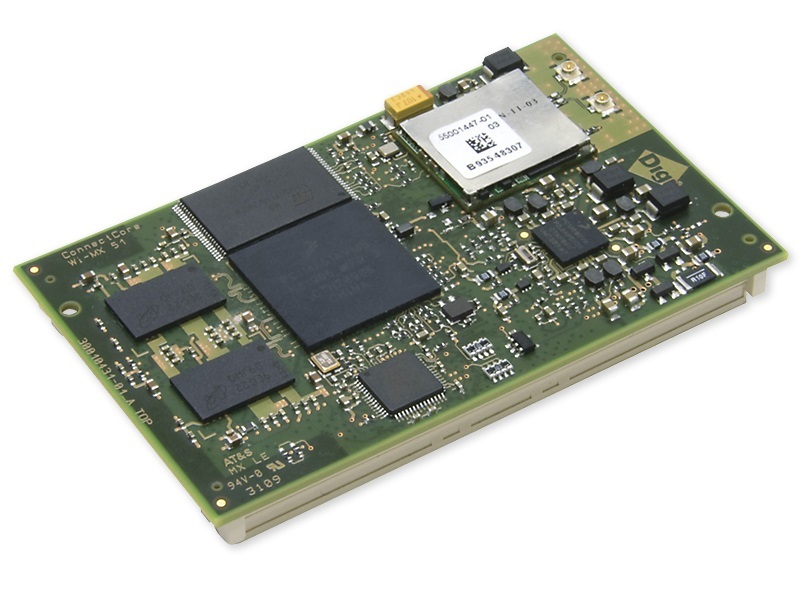

Digi ConnectCore i.MX51X
Product SKU: CC-MX-LB69-ZK
DIGI CONNECTCOREi.MX51 / Wi-i.MX51High-end Cortex-A8 System-on-Module solution delivers industry-leading performance, low-power operation, and fully integrated 802.11a/b/g/n + Ethernet networking The network-enabled ConnectCore for i.MX51 family offers a highly integrated and future-proof System-on-Module (SOM) solution based on the new Freescale® i.MX515 application processor, which offers a high-performance ARM® Cortex™-A8 core, powerful multimedia options, and on-chip peripherals. The modules combine the fast integration, reliability and design flexibility of an off-the-shelf SOM with complete out-ofthe-box software development support for platforms such as Microsoft® Windows® Embedded CE 6.0, Windows Compact 7 and Digi® Embedded Linux. With industry-leading performance and key features such as a dual-display interface and a hardware encryption engine, the module is the ideal choice for a broad range of target markets including medical, digital signage, security/access control, retail, industrial/building automation, transportation and more.
Features- High-end, low-power 32-bit System-on-Modules - Integrated 10/100 Mbit Ethernet networking - Pre-certified 802.11a/b/g/n wireless LAN interface - On-chip hardware encryption engine - Hardware accelerated high-definition multimedia - Power Management IC - Industrial operating temperature available - Low-emission design with FCC Class B compliance - ZigBee®, cellular and satellite connectivity options - Windows Embedded and Linux support

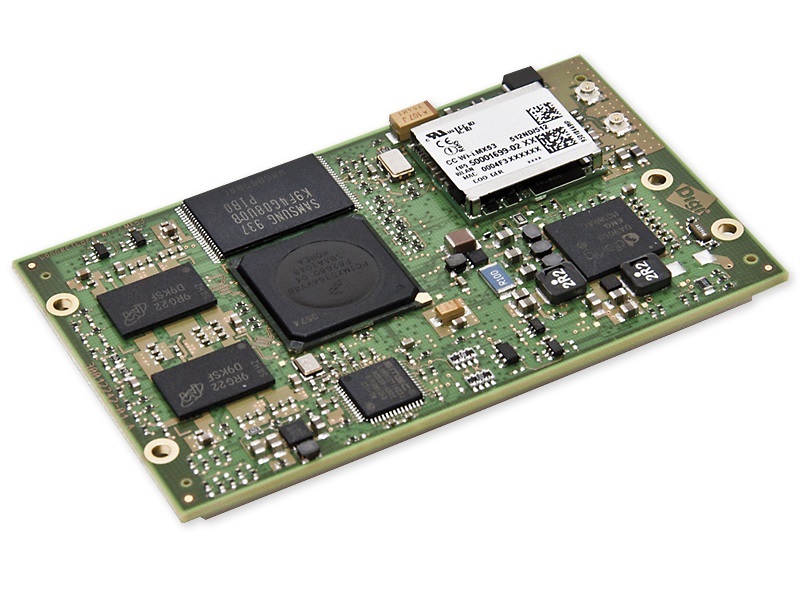

Digi ConnectCore i.MX53 and Wi-i.MX53X
Product SKU: CC-MX-LD79-ZK-P
DIGI CONNECTCOREi.MX53 / Wi-i.MX53High-end Cortex-A8 System-on-Module solution delivers industry-leading performance, low-power operation, and fully integrated 802.11a/b/g/n + Ethernet networking The network-enabled ConnectCore for i.MX53 module family is a highly integrated and future-proof System-on-Module (SoM) solution based on the new Freescale® i.MX53 application processor. It offers a high-performance 1 GHz ARM® Cortex™-A8 core, wired and wireless connectivity options, powerful 1080p/720p video encoding/decoding capabilities and a complete peripheral set. The ConnectCore for i.MX53 family builds on the successful ConnectCore for i.MX51 modules by providing a form factor compatible option with significantly improved processing, memory, video and connectivity capabilities. It is a scalable and energy-efficient module family, ideal for medical devices, security/surveillance equipment, industrial applications and digital signage
Features- High-performance 32-bit System-on-Module - Long-term product availability solution - Single and dual 10/100 Mbit Ethernet networking - Pre-certified 802.11a/b/g/n Wi-Fi interface - High-performance 2D/3D Graphics Processing Unit - Hardware video processing with 1080p decoding - Low-emission design with FCC Class B compliance - ZigBee, cellular and satellite connectivity options - Industrial operating temperature support

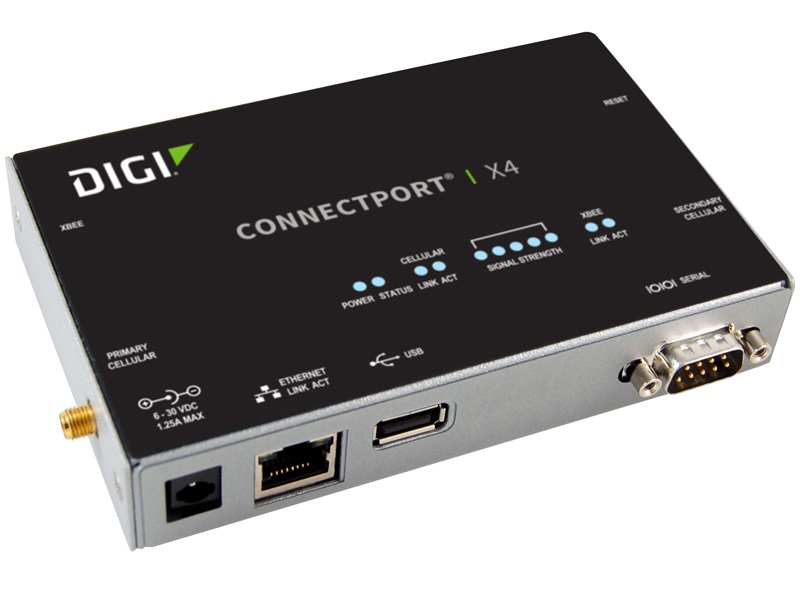

Digi ConnectPort X4 FamilyX
Product SKU: X4-Z11-E-W-P
DIGI CONNECTPORT X4 FAMILY
Features- WAN connectivity via LTE or 3G HSPA+ Networks - Local wireless connectivity through Zigbee/802.15.4 - Local wired connectivity through RS-232/422/485, 2 analog inputs and 2 digital inputs - Small commercial-grade enclosure or NEMA 4X/IP66 case - Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES or AES encryption - Easy development environment via DIA and Python scripting as part of Digi ESP IDE - Support for Modbus/Modbus TCP - Digi Remote Manager® support for secure, scalable access to an unlimited number of remote assets - Digi Foundations™ 1-, 3- or 5-year subscription available
Digi Embedded - CABLE - U.FL FEMALE TO RPSMA FEMALE 4"X
Product SKU: JF1R6-CR3-4I
CABLE - U.FL FEMALE TO RPSMA FEMALE 4"Adapter cable for connecting U.FL to RPSMA Cable type: RG-178 End A: RP-SMA Female Jack, Male Pin; End B: Ultra Miniature Coaxial Plug, Female Socket, Right Angle Length: 4.00" (101.6 mm) Connector: Size: 30 AWG; Material: silver-coated copper; Conductors number: 7; Conductors size: 0.102 mm; O.D.: 0.31 mm

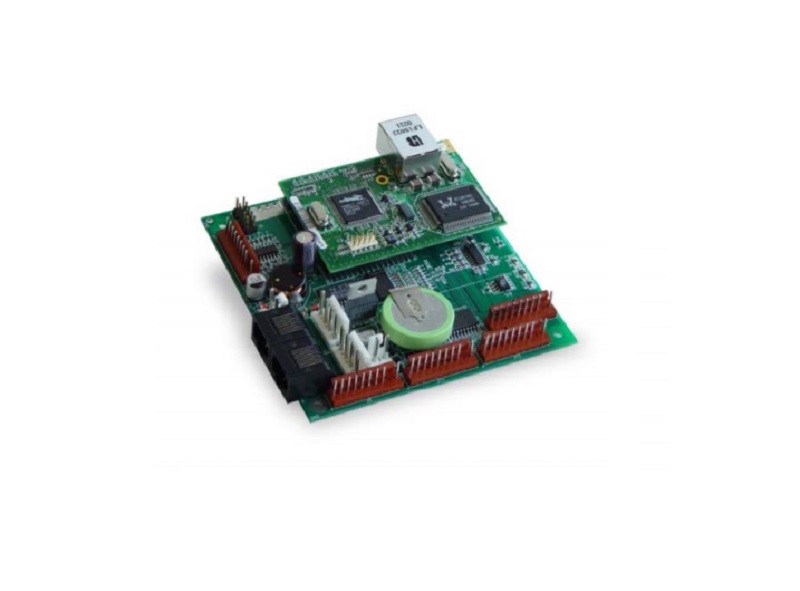

Digi Embedded - Coyote (BL2500)X
Product SKU: 20-101-0575
Coyote (BL2500)C-Programmable Single-Board Computer with Ethernet The Coyote single-board computer gives OEM designers extremely low-cost embedded control for high-volume applications. Two standard models—one with Ethernet, one without feature the Rabbit® 3000 microprocessor running at 29.4 MHz, with standard 256K flash and 128K SRAM. These compact boards are rich with the I/O (including one A/D input and two D/A outputs) designers need for embedded control and monitoring applications, and the Coyote's compact board size of 3.95" × 3.95" (100 × 100 mm) is easily mountable in standard 100 mm DIN rail trays. Customized BL2500 models can be manufactured in volume in OEM versions to user-specified configurations. Pin-compatible RabbitCore modules allow multiple configurations of the Coyote with Ethernet and memory options.
Features- Rabbit 3000® microprocessor operating at 29.4 MHz (option for 44.2 MHz with 10/100Base-T Ethernet interface) - 128K SRAM and 256K flash memory standard, optional 512K SRAM/512K flash - 24 digital I/O: 9 protected and filtered digital inputs, 7 high-speed protected but unfiltered digital inputs, and 8 digital outputs sinking up to 200 mA at up to 36 V DC - one 8-bit analog input channel - two 9-bit PWM analog output channels - six serial ports, including RabbitNet™ expansion ports - one 10/100-compatible RJ-45 Ethernet port with standard 10Base-T interface (optional 10/100Base-T interface) - 4 user-programmable LEDs. - battery-backed real-time clock. - watchdog supervisor. - onboard backup battery for real-time clock and SRAM
