Quectel L96 Multi-GNSS Receiver Module Embedded Chip Antenna The L96 module comprises of 33 tracking channels, 99 acquisition channels and 210 PRN channels, L96 supports concurrent reception of up to 3 GNSS systems (GPS+GLONASS+Galileo). The L96 module has a built-in LNA and this provides the module with increased performance within weak signal areas. With an embedded antenna, this allows for a reduction of space in the customers application. In order to meet a variety of application demands, L96 also provides an external antenna interface. In comparison to solely using GPS, allowing for multiple GNSS systems this increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, useful when driving in rough urban environments.

Features

Ultra-compact size: 14.0mm × 9.6mm × 2.0mm > Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo (RLM supported) and QZSS > Embedded, Omnidirectional and Wideband Antenna > Built-in LNA for better sensitivity > Dual SAW filters for better noise cancellation > Support EASY & EPO advanced AGPS technologies without the need of any external memory > Power saving algorithm integrated, AlwaysLocate > Ultra low tracking power consumption: 20mA > LOCUS, embedded log saving function without the need of host or any external flash > Supporting DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN) > Good anti-jamming performance due to multi-tone active interference canceller > Balloon mode, for high altitude up to 80km > PPS VS. NMEA can be used in time service > GLP/geo-fence/jamming detection/odometer functions > Support SDK command for customized settings

Quectel BG600L-M3 LTE Cat M1/Cat NB2/EGPRS Module The BG600L-M3 module is multi-mode LPWA that supportis LTE Cat M1/Cat NB2/EGPRS and integrated GNSS. BG600L-M3 is 3GPP Rel. 14 compliant, offering maximum data rates of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. Featuring Ultra-Low power consumption by leveraging the integrated RAM/flash and the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor. BG600L-M3 possesses an extensive set of hardware-based security features and allows trusted applications to run directly on the Cortex A7 TrustZone engine. In addition, BG600L-M3 is compatible with Quectel GSM/GPRS/GNSS module MC60, which provides a fitting solution for customers when network migrating.

Features

• LTE Cat M1/Cat NB2/EGPRS Module that has ultra-low power consumption
• Allows for easy migration from Quectel GSM/GPRS/GNSS module MC60
• Support VoLTE* for LTE Cat M1 and CS voice* for GSM
• Integrated RAM and flash in the baseband chipset
• Comprehensive set of hardware-based security features
• Compact SMT form factor ideal for size-constrained applications
• Robust mounting and interfaces

Quectel BG95-M2 LTE Cat M1/Cat NB2 Cellular Evaluation Module Region/Operator: For the Global LTE FDD : Cat M1 Only: B1/B2/B3/B4/B5/B8/12/B13/B18/B19/ B20/B25/B26/B27/B28/B66/B85 GNSS (optional): GPS/GLONASS/BeiDou/ Galileo/QZSS Certification- Carrier Europe:Vodafone*/ Deutsche Telekom*/ Telefónica* America: Verizon/AT&T/Sprint/ T-Mobile* Canada: Rogers*/Telus* China: China Telecom*/China Mobile*/ China Unicom* Regulatory: Global: GCF Europe: CE North America: PTCRB America: FCC Canada: IC Brazil: Anatel Mexico: IFETEL* China: SRRC*/NAL*/CCC* South Korea: KC* Taiwan China: NCC* Japan: JATE*/TELEC* Australia/New Zealand: RCM Thailand: NBTC* Singapore: IMDA* Others: RoHS/ATEX*

Quectel BG95-M3 Module with GSM/EDGE BG95-M3 series comprises of multi-mode LPWA utilising LTE Cat M1/Cat NB2/EGPRS and integrated GNSS. The M3 variant includes LTE FDD: Cat M1: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/ B20/B25/B26/B27/B28/ B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/ B25/B28/B66/B71/B85 GSM/EDGE: 850/900/1800/1900 MHz GNSS (Optional): GPS/GLONASS/BeiDou/ Galileo/QZSS Certification: Carriers; Europe: Vodafone*/ Deutsche Telekom*/ Telefónica* America: Verizon/ AT&T/ Sprint/T-Mobile* Canada: Rogers*/Telus* China: China Telecom*/ China Mobile*/ China Unicom* Regulatory: Global: GCF Europe: CE North America: PTCRB America: FCC Canada: IC Brazil: Anatel Mexico: IFETEL* China: SRRC*/NAL*/CCC* South Korea: KC* Taiwan China: NCC* Japan: JATE*/TELEC* Australia/New Zealand: RCM Thailand: NBTC* Singapore: IMDA* Others: RoHS/PEN/ATEX*

Overview coming soon - Call 01527 830800 for information

Features

BG95 is a series of multi-mode LPWA modules supporting LTE Cat M1/Cat NB2/EGPRS and integrated GNSS.It is 3GPP Rel-14 compliant and offers maximum data rates of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor. BG95 boasts a comprehensive set of hardware-based security features and enables trusted applications to run directly on the Cortex A7 TrustZone engine. Additionally, BG95 provides pin-to-pin compatibility with Quectel LTE Cat 4 modules EG91/EG95, LTE Cat M1/Cat NB1/EGPRS module BG96, NB-IoT module BC95, UMTS/HSPA modules UG95/UG96 and GSM/GPRS module M95. With a cost-effective SMT form factor of 23.6 mm × 19.9 mm × 2.2 mm and high integration level, BG95 enables integrators and developers to easily design their applications and take advantage from the module's low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications. A rich set of Internet protocols, industry-standard interfaces and abundant functions extend the applicability of the module to a wide range of M2M applications such as wireless POS, smart metering, tracking, wearable devices, etc. Key Key Features LTE Cat M1/Cat NB2/EGPRS module with ultra-low power consumption Easy migration from Quectel GSM/GPRS, UMTS/HSPA and LTE modules Integrated RAM and flash in the baseband chipset Comprehensive set of hardware-based security features Support VoLTE* (Cat M1 only), CS voice* for GSM, QuecOpen®, eSIM, etc. Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts Compact SMT form factor ideal for size-constrained applications with tight space Robust mounting and interfaces

Quectel EC21 IoT/M2M-optimized LTE Cat 1 Module The EC21 module is a series of LTE CAT 1 modules that were designed specifically for M2M and IoT applications. Featuring cost-effective, low-power LTE connectivity. Delivering maximum data rates up to 10Mbps downlink and 5Mbps uplink. Making the EC21 module a great choice for a range of IoT applications that are not reliant on high speed connectivity, however still require the longevity and reliability of LTE networks. Compatible with; Quectel UMTS/HSPA+ UC20/UC200T modules and multi-mode LTE Standard EC25/EC20 R2.0/EC20 R2.1/EG25-G/EG21-G modules in the compact and unified form factor. The EC21 series contains 10 variants: EC21-E, EC21-EU, EC21-EUX, EC21-A, EC21-V, EC21-AUT, EC21-AU, EC21-AUX, EC21-KL and EC21-J. Making the series backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G network.

Features

• Supporting Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS)
• Cost-effective, lower-power LTE connectivity optimized for broad- band IoT applications
• Feature refinements: supports DFOTA, eCall* and DTMF
• MIMO Technology

Region: EMEA/Thailand/India Certification- Carrier: Vodafone/Deutsch Telekom/ Telefónica* Regulatory: GCF/ CE/ FAC Others: WHQL

Quectel EC21 Mini PCIe is a series of LTE category 1 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). Especially optimized for M2M and IoT applications, it features cost-saving, low power LTE connectivity, and delivers M2M-optimized speeds of 10Mbps downlink and 5Mbps uplink. These make it ideal for numerous IoT applications that are not reliant on high speed connectivity but still require the longevity and reliability of LTE networks. EC21 Mini PCIe contains 9 variants: EC21-E Mini PCIe, EC21-EU Mini PCIe, EC21-EC Mini PCIe, EC21-A Mini PCIe, EC21-V Mini PCIe, EC21-AU Mini PCIe, EC21-AUT Mini PCIe, EC21-J Mini PCIe and EC21-KL Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G network. EC21 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as smart metering, tracking and tracing, fleet management, wearable devices, smart home gateways, digital signs, and even drones.

Features

Quectel EC21 Mini PCIe Series IoT/M2M-optimized LTE Cat 1 Module

Quectel EC25 MINIPCIE LTE Cat 4 Module adopting PCI Express The Quectel EC25 series of Mini PCIe cards are LTE CAT 4 modules that are designed in the standard PCI Express Mini Card Form Factor. Created specifically for M2M and IoT applications/designs. Delivering 150Mbps downlink and 50Mbps uplink data rates. The EC25 Mini PCIe series contains 11 variants: EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX Mini PCIe. Allowing backward-compatibility with existing EDGE and GSM/GPRS networks, providing connectivity, even in remote areas without 4G or 3G coverage. EC25 Mini PCIe supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, providing speedy and more accurate, more dependable positioning.

Features

> Regions: EMEA/South Korea/ Thailand/India > LTE category 4 module optimized for broadband IoT applications > Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage >Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices >MIMO technology meets demands for data rate and link reliability in modem wireless communication systems >Multi-constellation GNSS receiver

Quectel EC25 IoT/M2M-optimized LTE Cat 4 Module The Quectel EC25 module is an LTE Cat 4 module that is designed specifically for M2M and IoT applications. Delivering maximum data rates up to 150Mbps downlink and 50Mbps uplink by utilising 3Gpp Rel. 11 LTE technology. Compatible with Quectel multi-mode LTE Standard EC21/EC20 R2.0/EC20 R2.1/EG25-G/EG21-G modules & UMTS/HSPA+ UC20/UC200T modules, which allows for flexible migration. The EC25 series contains 13 different modules including; EC25-E, EC25-EU, EC25-EUX, EC25-J, EC25-A, EC25-V, EC25-AF, EC25-AFX, EC25-MX, EC25-AUT,EC25-AUTL, EC25-AU and EC25-AUX. Making it backward compatible with existing EDGE and GSM/GPRS networks.

Features

• Supporting Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS)
• MIMO technology
• Embedded Abundant Protocols
• Wi-Fi
• eCall
• Rich Set of Internet Protocols

Quectel EG21-G Mini PCIe IoT/M2M-optimized LTE Cat 1 Module The EG21-G Mini PCIe module is LTE CAT 1 that adopts a standard PCI Express Mini Card form factor, created to best suit M2M and IoT applications. Delivering maximum data rates up to 10Mbps downlink and 5Mbps uplink. This module is also backward-compatible with EDGE and GSM/GPRS networks, allowing for connection even in remote areas where there is no 4G or 3G coverage. Supporting Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). Integration of GNSS makes product design simplified and provides faster, more accurate and dependable positioning. Including a rich set of Internet protocols, industry-standard interfaces and abundant functionalities, this module is well adapted to best suit the following applications;

• Smart Metering
• Wearable Devices
• Environmental Monitoring
• Asset Tracking
• Fleet Management
• Alarm Systems

Features

• LTE Cat 1 module optimized for broadband IoT applications
• Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
• Standard PCI Express® Mini Card form factor
• MIMO technology
• Multi-constellation GNSS receiver

Quectel EG21-G IoT/M2M-optimized LTE Cat 1 Module The EG21-G module is LTE CAT1 designed specifically for M2M and IoT designs. It adopts the 3GPP Rel.11 LTE technology, which delivers maximum data rates up to 10Mbps downlink and 5Mbps uplink. The EG21-G modules design is a unified form factor, allowing it to be compatible with Quectel UMTS/HSPA+ UC20/UC200T modules and multi-mode LTE Standard EC2x (EC25, EC21, EC20 R2.0 and EC20 R2.1)/EG25-G modules, this allows for flexible migration among them in design and use. Backward-compatible with existing EDGE and GSM/GPRS networks, allowing for connection, even in remote areas devoid of 4G or 3G coverage. This module supports Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS simplifies product design, providing quick, accurate and more dependable positioning.

Features

• LTE Cat 1 module optimized for M2M and IoT applications
• Worldwide LTE, UMTS/HSPA(+) & GSM/GPRS/EDGE coverage
• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
• Feature refinements: supports DFOTA, eCall* and DTMF*
• MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Quectel EG25-G Mini PCIe IoT/M2M-optimized LTE Cat 4 Module The EG25-G Mini PCIe is an LTE CAT4 module adopting standard PCI Express Mini Card form factor (Mini PCIe). Optimized specifically for M2M and IoT applications, delivering maximum data rates up to 150Mbps downlink & 50Mbps uplink. It is backward-compatible with existing EDGE and GSM/GPRS networks, allowing connection even in remote areas lacking 4G/ 3G coverage. The EG25-G Mini PCIe supports Qualcomm, IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS simplifies product design, providing quicker more accurate and dependable positioning.

Features

> LTE category 4 module optimized for broadband IoT applications > Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage > Standard PCI Express Mini Card form factor (Mini PCIe) allows for the easy integration of wireless connectivity into devices > MIMO technology meets demands for data rate and link reliability in modem wireless communication systems >Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Quectel EG91EX IoT/M2M-optimized LTE Cat 1 Module EG91 is a series of LTE CAT 1 modules that contain 6 variants including; EG91-E, EG91-EX, EG91-NA, EG91-NS, EG91-VX and EG91-NAX. These modules were specially designed for IoT and M2M applications. Utilising 3GPP Rel. 11 LTE technology, it delivers maximum data rates up to 10Mbps downlink and 5Mbps uplink. Making the EG91 series perfect for IoT applications that are not reliant on high speed connectivity, but insist on longevity and the reliability of LTE. EG91 is also pin-to-pin compatible with Quectel UMTS/HSPA+ module UG95/UG96 & LPWA module BG95/BG96. It is also backward-compatible with existing GSM/ GPRS and UMTS/HSPA+ networks, ensuring that it can be connected even in remote areas wihere there is no 4G network coverage.

Features

• Cost-effective and low-power LTE connectivity
• Rich Set of Internet Protocols
• Compact SMT Form Factor

Regulatory: GCF/ CE/ RCM Others: WHQL Region: EMEA

Quectel EG95EFBTEA-512-SNND IoT/M2M-optimized LTE CAT 4 Module The EG95 is a series of LTE CAT 4 modules that are optimized for M2M and IoT applications. Utilising 3GPP Rel. 11 LTE technology, it delivers 150Mbit/s downlink and 50Mbit/s uplink data rates. EG95 is pin-to-pin compatible with UMTS/HSPA+ UG95/UG96 and LTE Cat M1/Cat NB1 BG96 modules. Also backward-compatible with existing GSM/GPRS & UMTS/HSPA networks, allowing for connection even in remote areas devoid of 4G network coverage.

Features

> LTE category 4 module optimized for M2M and IoT applications > Multi-band LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage > Compact SMT form factor ideal for size-constrained applications with extended operation temperature range > Embedded power management unit (PMU) featuring ultra-low deep-sleep current consumption > Simple migration from 2G/3G to 4G with a flexible and scalable platform

Quectel EM06 LTE Advanced CAT 6 module The EM06 series comprises of 3 variants EM06-E, EM06-J and EM06-A. Each designed to target different regions, covering almost all of the main stream carriers across the world. This module is LTE advanced CAT 6, specifically designed for M2M and IoT designs/applications. Utilising 3GPP Rel. 11 LTE technology, EM06 delivers M2M-optimized speeds of 300Mbit/s downlink and 50Mbit/s uplink peak data rates. With the M.2 form factor, EM06 is compatible with Quectel future Cat 12 module EM12 and Cat 16 module EM16, which will facilitate customers to migrate between different categories in the future.

Features

> LTE-A Cat.6 module with M.2 form factor, optimized for M2M and IoT applications > Support LTE-A carrier aggregation >Worldwide LTE-A and UMTS/HSPA+ coverage > Multi-constellation GNSS receiver available > Feature refinements: supports DFOTA* and DTMF > MIMO technology meets demands for data rate and link reliability in modem wireless comms systems

EM12-G LTE Advanced CAT12 Module The EM12-G is a CAT12 LTE Advanced module that is specifically designed for M2M and IoT applications. Utilising th 3GPP Rel. 12 LTE tech, this allows it to achieve M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates. The EM12 is designed in M.2 Form Factor, which makes it compatible with Quectel CAT6 module EM06 and Quectel EM16, which will simplify the customers migration between different categories. The EM12-G is designed for global applications and almost covers all of the main stream carriers across the globe. Supporting Qualcomm IZat location technology Gen9HT Lite (GPS, GLONASS, BeiDou, Galileo). The integrated GNSS greatly facilitates product design, providing speedy, more accurate and greater dependable positioning capability.

Features

> LTE-A Cat 12 module with M.2 form factor, optimized for eMBB and IoT applications > Support DL 3x carrier aggregation & 256QAM > Worldwide LTE-A and UMTS/HSPA+ coverage > Multi-constellation GNSS Receiver > Feature refinements: supports DFOTA & VoLTE > MIMO technology meets demands for data rate and link reliability in modem wireless comms systems

Quectel EP06ELA-512-SGA LTE Advanced CAT 6 Module The EP06 series are CAT6 modules that are LTE Advanced, optimized for M2M and IoT applications. This module also incorporates 3GPP Rel. 11 LTE technology, delivering M2M-optimized speeds of 300Mbit/s downlink and 50Mbit/s uplink peak data rates. MiniPCIE form factor makes the EP06 compatible with Quectel future Cat 12 module EP12 and Cat 16 module EP16, helping customers to migrate between different categories if they require in the future. This series comprises of 4 variants (EP06-E, EP06-A, EP06-LA* and EP06-APAC*) each designed for different target regions and nearly cover all the main stream carriers worldwide. Supporting; Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS allows simplifi product design, and provides quicker, more accurate and more dependable positioning capability.

Features

> LTE-A Cat 6 module with Mini PCIe form factor, optimized for M2M and IoT applications > Supporting LTE-A carrier aggregation > Worldwide LTE-A and UMTS/HSPA+ coverage > Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment > Feature refinements: supports DFOTA & DTMF > MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

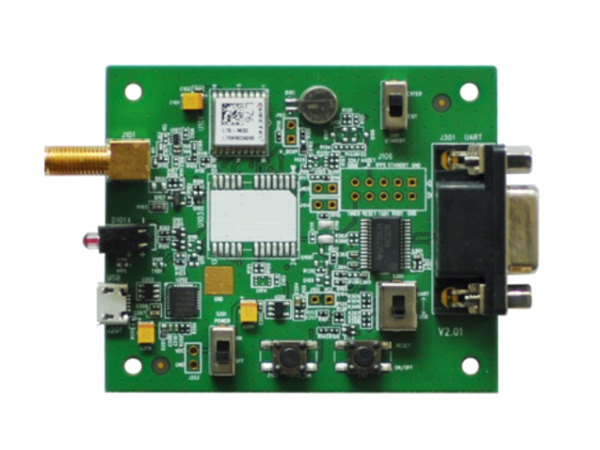

Quectel L76 EVB KIT for all L76 Series Modules The EVB Kit Includes;

• One-page instruction
• Micro-USB cable
• GNSS active antenna (3.3V)
• A CD-ROM includeing evalution tools, USB driver and documentation

The L76 module itself is extremely compact in size and is a GNSS module. L76 is a concurrent GNSS receiver with multiple GNSS systems. Providing simultaneous GPS, GLONASS, BeiDou, Galileo and QZSS open service L1 reception capability. A total of 33 tracking channels, 99 acquisition channels and 210 PRN channels, this module can acquire and track any mix of multiple satellite signals. As L76 has multiple GNSS systems this allows for an increase in the number of visible satellites, which in turn reduces the time to first fix and increases positioning accuracy, particularly important when driving in rough urban environments.

Features

• Compact size and easy to use
• Abundant functinal interfaces
• Micro-USB interface both for power supply & data transfer
• Visualization for modules working status via LEDs
• An external battery is available
