Showing all 8 results
Digi Embedded – Rabbit MiniCore RCM6700 Series
Digi Embedded - Rabbit MiniCore RCM6700 SeriesX
Product SKU: 20-101-1318-P
DIGI MINICORE RCM6700 SERIESAn easily scalable cloud-computing infrastructure, extending remote device control and management with tremendous savings in development cost The ultra-compact MiniCore RCM6700 is ideal for today’s smart energy initiatives as well as other applications that require a cost effective web-enabled device server. The RCM6700 series provides up to 6 serial ports, configurable I/O and control features such as PWM. Furthermore, the RCM 6700 series offers a much greater feature set then comparable device servers, while at a lower cost. The RCM6700 series is fully programmable, taking advantage of processor peripherals. The programming environment, Dynamic C, is an ANSI C compatible development environment that provides a royalty free TCP/IP stack and Wi-Fi support. Various protocol support such as ZigBee, Modbus and BACnet are also available to help reduce development costs and time-to-market. In additon to proccessor and protocol support, Dynamic C supports Digi Remote Manager ® . Digi Remote Manager simplifies device deployment by allowing devices to easily pass through firewalls, eliminating server maintainance and costly on-site visits. Digi Remote Manager supports remote firmware updates and data storage for greater device control and monitoring.
Features- Rabbit® 6000 running up to 200 MHz - 10/100 Ethernet and pin-compatible with MiniCore 802.11b/g wireless modules - 1 MB of internal RAM for program storage - Up to 4 MB of serial Flash for data logging or web page storage - Digi Remote Manager provides cost-effective cloud computing for remote device management - Seamless migration to chip level design - 5X greater throughput performance
Digi Embedded – Rabbit SBC BL2600 Series
Digi Embedded - Rabbit SBC BL2600 SeriesX
Product SKU: 20-101-0889
DIGI RABBIT SBC BL2600 SERIESBest suited for industrial control applications and is a low-cost PLC alternative The BL2600 series represents a class of advanced singleboard comptuers that incorporates the powerful Rabbit 3000 microprocessor, Flash memory and RS-232/RS-485 serial ports. Additional module variants enable data logging of up to 1 GB in data storage. Functionality of the BL2600 series can be expanded using optional RabbitNet™ expansion cards. The BL2600 series can be connected via two mechanisms: Dual-entry IDC through-hole sockets, which allow header mounting on either side of the board, and polarized locking industry-standard friction-lock connectors that enable rapid assembly with a wire harnesses. These connectors provide dependable cable harness connectivity to I/O. RabbitNet expansion boards are available (including A/D, D/A, digital I/O and keypad/display interface cards) to interface via the two multiplexed SPI RS-422 ports.
Features- Rabbit® 3000 microprocessor at 44 MHz - 10/100Base-T Ethernet, RJ-45 - 512K Flash/512K SRAM - 36 digital I/O (configurations include protected digital inputs, sinking/sourcing outputs, high current outputs) - 12 analog channels: eight 11-bit A/D, four 12-bit D/A buffered outputs - RabbitNet expansion ready - Multiple “core module” options allow flexibility n functionality

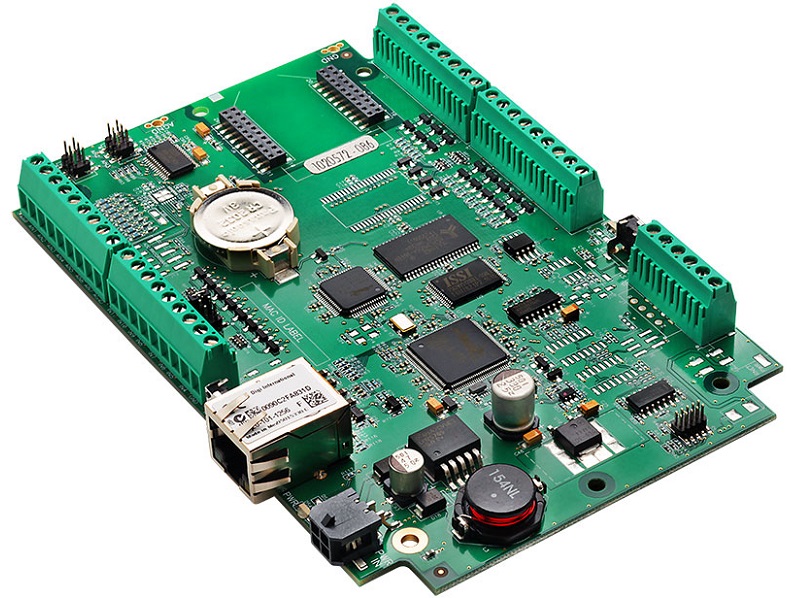

Digi Embedded – Rabbit SBC BL4S100 Series
Digi Embedded - Rabbit SBC BL4S100 SeriesX
Product SKU: 20-101-1256-P
DIGI RABBIT SBC BL4S100 SERIESIntegrated hardware and software platform to easily implement a ZigBee enabled Ethernet gateway ideal for monitoring and control Digi’s BL4S100 series single-board computers offer a costcompetitive solution for control and communication that dramatically reduces your time to market. The series is designed to support the rapidly-increasing use of ZigBee connectivity for companies looking to deploy wireless networking. Digi International’s ZigBee RF modules are compatible with ZigBee PRO compliant devices from other manufacturers, providing great flexibility in choices of nodes to include in the network. Build feature-rich web pages that allow control and monitoring of ZigBee enabled networks by using ZigBee AT and API command libraries. With two available RS-232 ports, eight analog inputs and 20 Digital I/O lines, the BL4S100 is well suited to handle a wide range of applications requiring ZigBee connectivity. Digi also offers a plastic enclosure and mesh networking add-on kit to support further design requirements.
Features- Rabbit 4000 running at 40 MHz - On-board Rabbit RIO® device for exceptional I/O functionality and flexibility - Web server functionality - Easy implementation of mesh networking with known good hardware - Dynamic C® software environment to reduce development time
Digi Embedded – RabbitNet Series
Digi Embedded - RabbitNet SeriesX
Product SKU: 20-101-0616-P
DIGI RABBITNET SERIESA point-to-point synchronous protocol that connects additional I/O and analog cards to a master device The RabbitNet signals are differential RS-422, which are series-terminated at the source. Peripheral cards and master controllers connect using a standard CAT 5/6 Ethernet cable or a crossover cable if using an OP7200 as a slave display. There are several RabbitNet card options which include: - RN1100 - Digital I/O - RN1200 - A/D - RN1300 - D/A - RN1400 - Relay expansion - RN1600 - Keypad display interface The RabbitNet system typically consists of a master singleboard computer and one or two peripheral cards. Several Rabbit SBCs such as the BL4S200 or BL2600 act as the master controller for fast data processing and provide the power on board needed for the peripheral cards. Distances between a master unit and peripheral cards can be up to 10 m or 33 ft with speeds up to 1 Megabit per second. Cards can be mounted in 100 mm DIN rail trays and optionally there is a RN1000 hub to connect up to 8 devices.
Features- 8 channels of 12-bit analog output - 24 protected and filtered digital inputs - 16 high-speed protected sinking/sourcing digital outputs - 6 SPDT Relays - 10 A maximum switching current (5A DC) - Display and keypad
Digi Rabbit Accessories
Digi Rabbit RCM4000 Series
Digi Rabbit RCM4000 SeriesX
Product SKU: 20-101-1094-P
DIGI RABBITCORE RCM4000 SERIESA powerful embedded Ethernet control device with the intelligence and Internet connectivity needed for remote monitoring and control of your devices The RCM4000 series is designed to mount directly to a usersupplied motherboard and acts as the microprocessor of the embedded system. The microprocessor features 28 GPIO lines shared with up to five serial ports and four levels of alternate pin functions that include variable phase PWM, quadrature decoder and input capture. The RCM4000 series, with its robust feature set, ample memory, 10Base-T Ethernet and analog, is ready for network connectivity and I/O control for true device Internet communication and control. Evaluation of the RCM4000 is easy with the RCM4000 development kit.
Features- Rabbit 4000 running at 59 MHz - Up to 1 MB (16-bit) Program Flash, 1 MB (16-bit) SRAM, 32 MB of Flash memory - 10Base-T Ethernet (RJ-45 connector), up to 28 GPIO, up to 5 serial ports - 8 channels 12-bit A/D converter - Web server capability and remote device control - Low-cost and easily deployable platform for non-critical embedded security - Security-key feature with "tamper detect" and encryption capabilities
Digi RabbitCore RCM2000 Series
Digi RabbitCore RCM2000 SeriesX
Product SKU: 20-101-0383-P
RabbitCore RCM2000C-Programmable Module The RabbitCore RCM2000 series is a family of microprocessor modules designed to be the heart of embedded control systems, providing an array of I/O and addressing. The RCM2000 is a core module designed to be the heart of your own controller built around the plug-in module. Data processing is done by a Rabbit 2000 microprocessor operating at up to 25.8 MHz (RCM2000 and RCM2010). The RCM2000 has a Rabbit 2000 microprocessor, a static RAM, a flash memory, two quartz crystals (main oscillator and timekeeping), and the circuitry necessary for reset and management of battery backup of the Rabbit 2000’s internal real-time clock and the static RAM. Two 40-pin headers bring out the Rabbit 2000 I/O bus, address lines, data lines, parallel ports, and serial ports. The RCM2000 receives its +5 V power from the user board on which it is mounted. The RCM2000 can interface will all kinds of digital devices through the user board. The RCM2000 Development Kit comes with a Prototyping Board that can be used to demonstrate the operation of the RCM2000 and to prototype new circuits.
Features- Small size: 1.90" × 2.30" (48.3 mm × 58.4 mm) - Microprocessor: Rabbit 2000 running at 25.8 MHz (RCM2000 and RCM2010) - 40 CMOS-compatible parallel I/O lines grouped in five 8-bit ports (shared with serial ports) - 8 data lines (D0–D7) - 13 address lines (A0–A12) - I/0 read, write, buffer enable - Status, watchdog and clock outputs - Two startup mode inputs for master/slave configuration - External reset input - Reset output - Five 8-bit timers, two 10-bit timers; five timers are cascadable in pairs - 256K flash EPROM, 512K SRAM - Real-time clock - Watchdog supervisor - Provision for customer-supplied backup battery via connections on header J2 - Four CMOS-compatible serial ports: maximum asynchronous baud rate of 806,400 bps, maximum synchronous baud rate of 6.45 Mbps. Two ports are configurable as clocked ports.
Digi RabbitCore RCM3000 Series
