x86 Embedded Systems

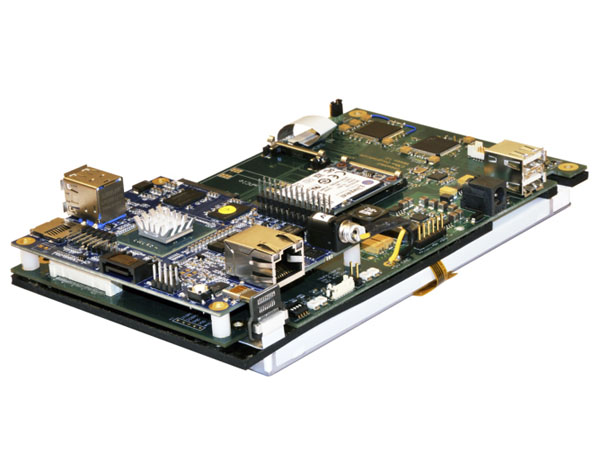

The Genie is a PC compatible, low power embedded computing platform, complete with a fully integrated TFT display, that offers the flexibility, ease of use and PC compatibility combined with robustness and longevity that is necessary in many industrial and embedded applications. The Genie is a bespoke, high reliability, embedded computer based on a dual core 1.46GHz Intel Atom E38xx 64-bit processor that implements a low power, fan-less design and boasts a power consumption of typically less than 10Watts (depending on usage). Up to 2GB of system memory is available, with an on-board SATA SSD providing storage capacity starting at 32GB. Support for a range of different connectivity and expansion options include: - Mini PCI-Express card slot for additional peripherals - one USB 3.0 port - three USB 2.0 ports - RS-232 serial port - Gigabit Ethernet port - Micro SD card slot A user defined expansion header can also be used for general purpose I/O, I2C, SPI or UART. The Genie GGE38-xxx is supplied with a fully integrated TFT LCD display module driven via a dual-channel LVDS interface. It can drive all displays sizes up to FHD resolution. An integrated touchscreen controller supports 4 and 5-wire resistive touch panels. Support for other display sizes, resolutions and touchscreen technologies can be provided on request. The platform features compact mechanical dimensions of 199mm (w) x 112mm (d) x 35mm (h) and an operating temperature range of 0° to +70°C which enables the Genie to be used in a wide range of systems and applications. The Genie supports Windows 7, 8.1 and 10, Linux and Android Lollipop operating systems. The built-in (EUFI) BIOS enables basic configuration and the ability to boot from SD card, USB or SATA drives.

Features

Genie Technical Specification: - Intel Atom E38xx 64-bit processor - Single or Dual Core up to 1.46GHz - 1 or 2GB RAM - On-board SATA SDD with storage capacity starting from 32GB - Mini PCI-Express card slot (for Wi-Fi, Bluetooth, etc.) - 1x USB 3.0 Super Speed port - 3 x USB 2.0 High Speed port - 1x RS-232 serial port - Gigabit Ethernet - Up to Full HD TFT LCD panel with dual-channel, low noise LVDS interface - Single 12V DC input - Micro SD card slot - Expansion header for GPIO, I2C, SPI, UART

Specifications

Genie Display Support: - GGE38-070 supports a 7.0” WVGA (800 x 480) TFT - GGE38-104 supports a 10.4”SVGA (800 x 600) TFT - GGE38-121 supports a 12.1 XGA (1024 x 768) TFT - GGE38-150 supports a 15.0 XGA (1024 x 768) TFT - GGE38-190 supports a 17.3”FHD (1920 x 1080) TFT Genie Touch Panel Support: - 4 or 5-wire resistive - Project Capacitive (PCap) Genie Operating System Support: - Windows 7, 8.1 and 10 - Linux - Android Lollipop 5.0 Genie Mechanical: - Compact size 199mm (w) x 112mm (h) x 35mm (d) - Operating temperature range 0°C to +70°C - PCB bonded to TFT display module enabling secure mechanical mounting - Optional aluminium chassis for demanding environments
