ZigBee

DIGI CONNECTPORT X4 FAMILY

Remote M2M networking gateways designed for commercial grade and rugged outdoor applications ConnectPort® X4 customizable cellular M2M gateways offer a variety of LAN/WAN interface options for end-toend networking of remote devices. The gateways include comprehensive IP protocols and IPSec VPN support for highend routing and security. The easy DIA/Python development environment enables custom applications to run locally while interfacing across cellular networks for WAN connectivity to a centralized server. ConnectPort X4 gateways feature a compact commercial-grade enclosure or an optional outdoors IP66/NEMA 4X enclosure. Interface options include Ethernet, serial and Zigbee/RF for flexible connectivity to virtually any remote device. All ConnectPort X4 gateways feature an end-to-end development environment using comprehensive Digi ESP™ IDE and DIA/Python programming languages. Digi Remote Manager® adds secure, scalable cloud-based management and web services integration for a complete remote asset platform across all locations.

Features

- WAN connectivity via LTE or 3G HSPA+ Networks - Local wireless connectivity through Zigbee/802.15.4 - Local wired connectivity through RS-232/422/485, 2 analog inputs and 2 digital inputs - Small commercial-grade enclosure or NEMA 4X/IP66 case - Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES or AES encryption - Easy development environment via DIA and Python scripting as part of Digi ESP IDE - Support for Modbus/Modbus TCP - Digi Remote Manager® support for secure, scalable access to an unlimited number of remote assets - Digi Foundations™ 1-, 3- or 5-year subscription available

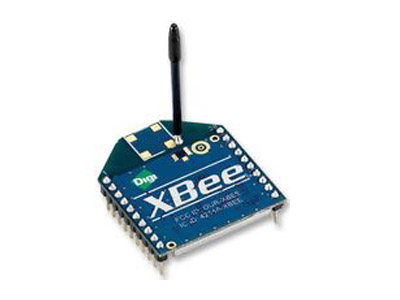

XBee® & XBee-PRO® ZB

Embedded RF modules provide low-cost, low-power wireless connectivity using the ZigBee PRO Feature Set XBee and XBee-PRO ZB embedded RF modules provide cost-effective wireless connectivity to devices in ZigBee mesh networks. Utilizing the ZigBee PRO Feature Set, these modules are interoperable with other ZigBee devices, including devices from other vendors*. Products in the XBee family are easy to use. They require no configuration or additional development; users can have their network up and running in a matter of minutes. Programmable versions of the XBee-PRO ZB module make customizing ZigBee applications easy. Programming directly on the module eliminates the need for a separate processor. Because the wireless software is isolated, applications can be developed with no risk to RF performance or security. XBee modules are available in a variety of protocols and frequencies. The common hardware footprint shared by Digi’s XBee modules means users can substitute one XBee for another with minimal development time and risk. *Interoperability requires the ZigBee Feature Set or ZigBee PRO Feature Set to be deployed on all devices. Contact Digi Support for details.

Features

- Interoperability with ZigBee compliant devices* - No configuration needed for out-of-the-box RF communications - Common XBee footprint for a variety of RF modules - ZigBee mesh networking protocol - Improved data traffic management - Remote firmware updates - Self-healing and discovery for network stability - Programmable versions of the XBee-PRO ZB enable custom ZigBee application development - 8-bit Freescale™ S08 microprocessor brings intelligence to devices - CodeWarrior® development tools for easy customization

Overview coming soon - Call 01527 830800 for information

Digi XBee3 Zigbee 3.0

Easy-to-add connectivity in a compact, low-power, low-profile footprint. Digi XBee3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed. Digi XBee3 Zigbee 3.0 offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others. •At 13 mm x 19 mm, the new Digi XBee3™ micro form factor allows for more compact and portable applications •Digi XBee3™ is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU •Eliminate the need for an external microcontroller and create smart end nodes and low-end gateways using MicroPython •Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

Features

SIZE AND FLEXIBILITY - At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications - Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU PROGRAMMABILITY - Eliminate the need for an external microcontroller and create smart end nodes using MicroPython SECURITY - Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT

DIGI XBEE 3 ZIGBEE MESH KIT

Explore hands-on mesh networking and connectivity with Digi XBee 3 RF modules The Digi XBee® 3 Zigbee Mesh Kit offers a great way to learn how to use Digi XBee 3 RF modules for device connectivity and Zigbee-based mesh networking. Zigbee is one of the most popular open standard mesh networking protocols, specifically designed for low-data rate and low-power applications. With simple examples and step-by-step guidance, you can quickly assemble kit components to create reliable, low-power device communications and sensor networks. Mesh networking is a powerful way to route data. Range is extended by allowing data to hop from node to node, and reliability is increased by “self-healing,” the ability to create alternate paths when one node fails or a connection is lost. Digi XBee 3 Zigbee Modules Included in the Kit Digi XBee 3 and XBee 3-PRO Zigbee modules are ideal for applications in the energy and controls markets where timeto-market and reliability are critical. With Digi’s extensive and easy-to-use DIGI XBee API framework, customers can get their Zigbee product to market faster than any other module available in the industry. Features like binding and multicasting also allow for simple integration for building automation applications. Our modules are available in the popular Digi XBee throughhole, surface mount and now micro-mount form factors, providing customers the flexibility to substitute one Digi XBee technology for another with minimal development time and risk. Using the long-range Digi XBee 3-PRO variant, customers can get up to two miles (3200 meters) LoS range.

Features

The Kit Includes: - 3 Digi XBee Grove Development Board - 3 Digi XBee ZigBee SMT Modules - 3 Micro-USB Cables - 3 Antennas - Comprehensive Web and Video-Based Instruction

DIGI XBEE GATEWAY FAMILY

Programmable gateway connects Digi XBee devices to cloud-based applications over cellular, Wi-Fi or Ethernet Digi XBee® Gateway provides a low-cost Digi XBee to IP solution, featuring scalable remote configuration and management of Digi XBee networks with Digi Remote Manager® (DRM). By default, all Digi XBee data sent to the gateway is automatically available to online applications via Digi Remote Manager. With a simple, open-source Python development environment, this gateway also enables custom applications to run locally while interfacing across existing Ethernet/WiFi/cellular networks for WAN connectivity to cloud-based software applications. Digi XBee Gateway products can be managed remotely via Digi Remote Manager, allowing users to remotely manage thousands of deployed devices, supporting features like remote firmware upgrades and event alarms. Digi XBee Gateway can be tested and developed using the Digi XBee ZigBee Cloud Kit, which fully integrates the Digi XBee Gateway, Digi XBee Module, Digi Remote Manager and a sample web application into a cohesive internetconnected solution. This kit is a powerful tool that enables developers to create internet-connected prototypes in 30 minutes or less.

Features

- Open Source Python environment for custom application development on the gateway - Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee networks - Secure, scalable access to an unlimited number of remote Digi XBee-based devices - Cellular, Wi-Fi and Ethernet WAN options for flexible broadband connectivity - Digi Foundations™ 1-, 3- or 5-year subscription available

DIGI XBEE® DIGI XBEE-PRO® ZIGBEE

Embedded ZigBee modules provide OEMs with a simple way to integrate mesh technology into their application Digi XBee and Digi XBee-PRO ZigBee RF modules provide cost-effective wireless connectivity to electronic devices. They are interoperable with other ZigBee PRO feature set devices, including devices from other vendors*. Digi XBee and Digi XBee-PRO ZigBee modules are ideal for applications in the energy and controls markets where manufacturing efficiencies are critical. The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes integration with embedded microcontrollers, lowering development costs and reducing time to market. Products in the Digi XBee family require little to no configuration or additional development. Programmable versions of the Digi XBee and Digi XBee-PRO ZigBee module make customizing applications easy. Programming directly on the module eliminates the need for a separate processor. Because the wireless software is isolated, applications can be developed with no risk to RF performance or security. Digi’s ZigBee compatible module is based on the Ember EM35x (EM357 and EM3587) system on chip (SoC) radio ICs from SiliconLabs, utilizing 32-bit ARM Cortex™ M3 processor. The S2D EM3587 version has a larger memory footprint for customers who may want to upgrade to Thread, an IPv6 based networking stack. *Interoperability requires the ZigBee Feature Set or ZigBee PRO Feature Set to be deployed on all devices. Contact Digi Support for details.

Features

BENEFITS - Programmable versions with on-board microprocessor enable custom ZigBee application development - Through-Hole and Surface Mount form factors enable flexible design options - Link budgets of 110 dB for Digi XBee and 119 dB for Digi XBee-PRO - Industry-leading sleep current - Firmware upgrades via UART, SPI or over the air (OTA) - Thread updatable on the S2D EM3587 variant for maximum flexibility

DIGI XBEE® ZIGBEE MESH KIT

Provides a hands-on way to learn how to use XBee RF modules for device connectivity and mesh networkingFeaturesThe Kit Includes: - 3 Digi XBee Grove Development Board - 3 Digi XBee ZigBee Modules (TH and SMT) - 3 Micro-USB Cables - 2 Digi XBee Stickers - Comprehensive Web and Video-Based Instruction

XBee® & XBee-PRO® ZB

XBee and XBee-PRO ZB embedded RF modules deliver low-cost, low-power wireless connectivity using theZigBee PRO Feature Set. XBee and XBee-PRO ZB embedded RF modules provide wireless connectivity to end-point devices in ZigBee mesh networks. Utilizing the ZigBee PRO Feature Set, these modules are interoperable with other ZigBee devices, including devices from other vendors*. XBee users can have their ZigBee network up-and-running in a matter of minutes, without confi guration or additional development. XBee modules are ideal for low-power, low-cost applications. XBee-PRO modules are power-amplifi ed, extended-range versions of XBee modules. Products in the XBee family are easy to use, share a common hardware footprint, and are interoperable with other XBee products. Available in a variety of protocols for different applications, one XBee can be substituted for another with minimal development time and risk. Digi’s unsurpassed offering of Drop-in Networking products provides seamless communication between devices. XBee adapters provide wireless connectivity to devices in wired networks. XBee wall routers extend the range and strength of a ZigBee network. ConnectPort™ X gateways enable users to access remote devices in a network. *Interoperability requires the ZigBee Feature Set or ZigBee PRO Feature Set to be deployed on all devices. Contact Digi Support for details.

Features

- Interoperability with ZigBee devices from other vendors* - No confi guration needed for out-of-the-box RF communications - Advanced confi guration options available via simple AT or API commands - Common XBee footprint for a variety of RF modules - Outdoor RF line-of-sight range up to 1 mile (1.6 km) - ZigBee mesh networking protocol - Improved data traffi c management - Remote fi rmware updates - Self-healing and discovery for network stability

XSTICK

The XStick provides local connectivity to a wireless XBee network from a laptop or PC, enabling local commissioning of the network and its devices Digi’s XStick is an easy-to-use USB to XBee Wireless Personal Area Network (WPAN) adapter, providing local connectivity to wireless networks. Simply plug the XStick into the USB port of a laptop or PC for instant access to an XBee network and its connected devices. This compact, USB-powered wireless adapter enables local network configuration, diagnostics or device monitoring. Two versions are available. The XStick 802.15.4 version is compatible with XBee and XBee-PRO® 802.15.4 devices and uses a fast multipoint network. The XStick ZB version is XSTICK® compatible with XBee or XBee-PRO ZB devices and utilizes the ZigBee PRO Feature Set for robust mesh networks. XStick is part of Digi’s XBee family of solutions, offering users seamless wireless communication between devices, including adapters, routers and gateways.

Features

- USB to XBee Wireless Personal Area Network adapter (WPAN) - Provides local connectivity for access, configuration nd network commissioning - Available in self-healing, self-configuring ZigBee mesh or fast 802.15.4 multipoint versions - USB powered - LEDs for power status and network association

Silicon Labs’ Mighty Gecko MGM111 module integrates its EFR32MG1 Mighty Gecko SoC into a small form factor module for zigbee and Thread mesh networks. Modules enable the fastest time to market and are ideal for lower volume (< 100 K) applications. The fully certified module integrates all components (Crystals, RF passives and Antenna) required for a system-level implementation of zigbee and Thread mesh networks. At +10 dBm this module meets the WW regulatory requirements for IEEE 802.15.4 2.4 GHz used in both zigbee and Thread networks.

Overview coming soon - Call 01527 830800 for information

Overview coming soon - Call 01527 830800 for information
