High Quality Radar Sensors for Industrial and Automotive Applications
Innovative radar technology is more in demand than ever. For years, radar technology has enriched everyday life through automation and smart
solutions; the possible applications for radar sensors are diverse and are constantly evolving.
InnoSenT GmbH has been successfully developing and manufacturing high-quality radar sensors since 1999 and is regarded as a technology driver in the industry. We now offer the InnoSenT range of distance measurement and security radar modules.
RADAR – ‘Radio Detection And Ranging’ – is an active transmission and reception method in the microwave GHz range. Radar sensors are used for contactless detection, tracking, and positioning of objects by means of electromagnetic waves.
A radar antenna emits a signal in the form of radar waves, which move at the speed of light. When the radar waves strike an object, the signal changes and is reflected back to the sensor – similar to how an echo is created. The received signal arriving back at the antenna can be processed in order to identify the object and determine its position using the data collected. It is also possible to then emit a pulse to trigger a reaction.
Radar technology offers certain advantages as it:
- Is independent from weather conditions
- Tolerates extreme heat and cold
- works even despite overexposure and bad lighting conditions
- Works in the dark
- Is maintenance-free
- Offers measurement of distance & speed, tracking, positioning of objects, determination of ETA, object classification, people count
- Is suitable for indoor & outdoor use
Explore the InnoSent radar sensor range below:

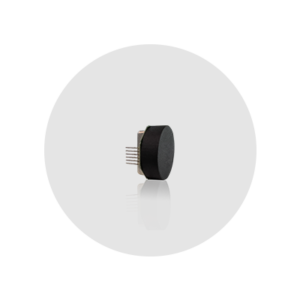

IDR-2050
Radar-based distance measurement sensor operating at 60 GHz with millimeter accuracy. Output of distance, velocity, direction and signal strength via UART. Configurable detection range. Narrow beamwidth (azimuth and elevation).
IMD-3101
FSK-radar working in the 24 GHz—ISM—band. Intelligent pre-processing unit detects moving targets and measures their speed, direction and range. Output via UART. Event trigger on open collector.
IMD-3000
Radar system with intelligent processing unit which converts radar signal into digital trigger when moving or static object detected in front of sensor. Contact-free alternative for push buttons. Wide supply range 4-30V.

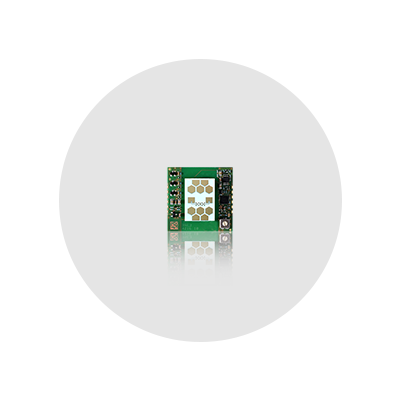

INS-3130
Motion detector/switch for Home Automation and Security applications. Doppler Motion Sensor, with a range of 5m for detecting a human being, combined with a radar based proximity switch for object detection for distances less than 5cm.

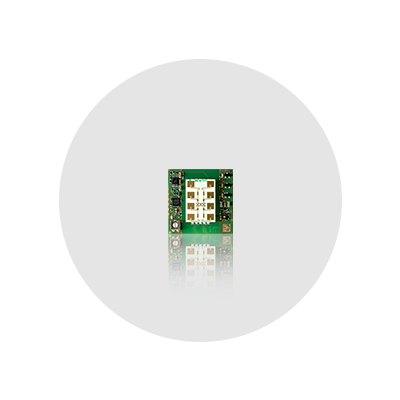

INS-3330
Motion detector/switch for Home Automation and Security applications. Doppler Motion Sensor, with a range of 10m for detecting a human being, combined with a radar based proximity switch for object detection for distances less than 10cm.

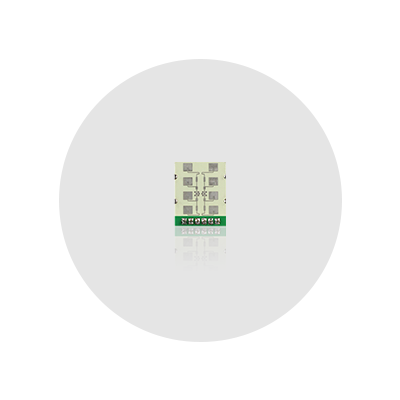

IMD-2000
FSK-radar working in the 24 GHz—ISM—band. Intelligent pre-processing unit detects moving targets and measures their speed, direction and range. Output via UART. Worldwide certification possible.
