Digi Transport Routers

Digi’s transport routers a specially designed for the transportation industry to support multiple requirements from one device; this includes onboard routing and GPS, security and passenger Wi-Fi. Digi’s new routers segment public and private data communication across dual 600 Mbps CAT 11 cellular modules.

Browse the range of Digi Transport Routers below and speak to one of our experts to find the ideal industrial Router for your business.

Jump to:

Compare the range of Digi Transport Routers

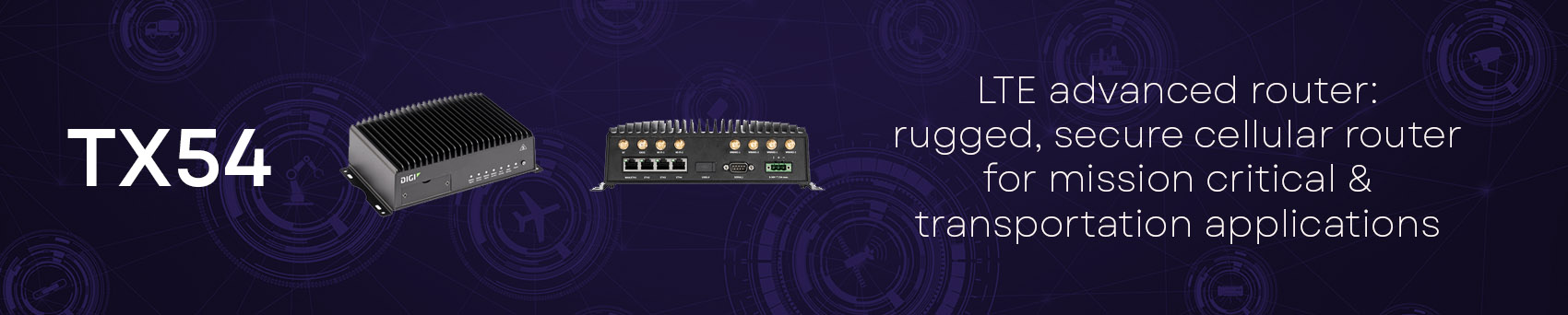

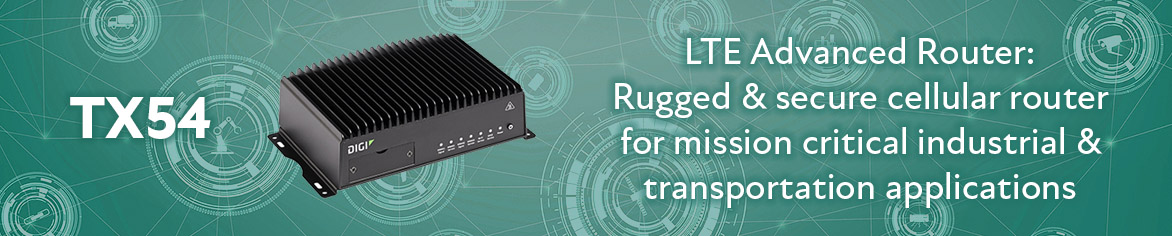

Digi TX54

The Digi TX54 is a versatile, powerful LTE-Advanced Cellular Router ideal for mission-critical applications where continuous connectivity and field longevity cannot be compromised. The Digi TX 54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to protect privacy and integrity. With both single and dual LTE-Advanced or LTE-Advanced Pro cellular module options, the Digi TX54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications.

The Digi TX54 was designed to meet the demands of first responders. It includes simultaneous and independent dual cellular interfaces that priortise critical communications. The industrial-grade design supports the most rugged conditions such as vibration and temperature changes. A Python development environment allows for edge computing and intelligence.

Features

  • Global models are available in both single and dual cellular options
  • Future-built with dual-core 880 MHz MIPS processor and PCIe 2.0 internal bus
  • Capable of segmenting private and public data communication across dual 600 Mbps LTE-Advanced Cat 11 or LTE-Advanced Pro Cat 12 cellular modules
  • High-speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN service and optional dual Wi-Fi radios
  • Cryptographic co-processor with secure key generation
  • Securely deploy, monitor and control devices with Digi Remote Manager®

Buy the Digi TX54 now

Back to top

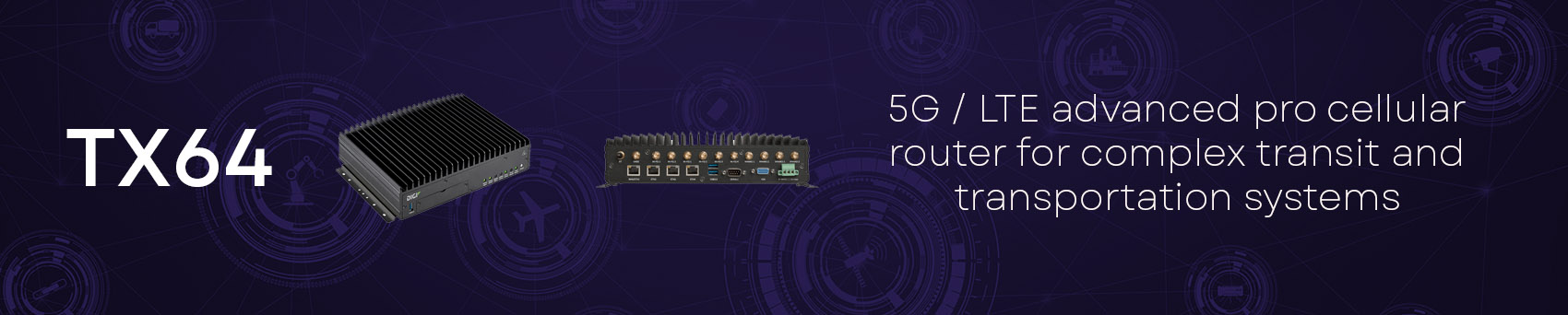

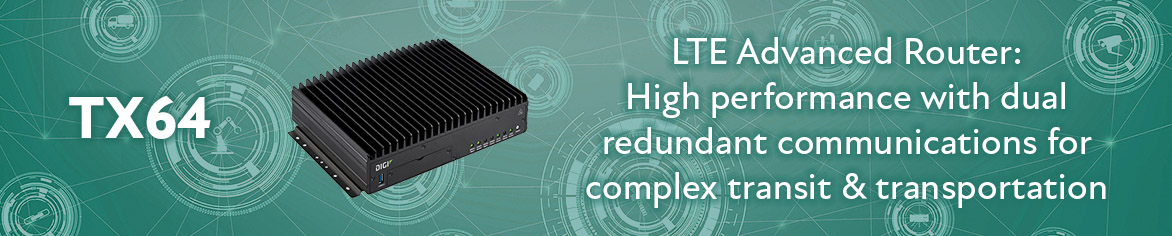

Digi TX64

The Digi TX64 is a dual cellular LTE-Advanced cellular router designed for challenging transportation and mobile environments with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated Wi-Fi access point, USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including GNSS and Bluetooth.

Internet access for passengers is secure and is managed without impact to onboard bus systems. Triple carrier aggregation on each cellular interface can be combined to deliver up to 1.2 Gbps to passengers. Onboard systems are a priority, and any remaining bandwidth is made available to Internet traffic.

A captive portal and splash page enable term acceptance, targeted messaging and agency branding. Standard HTTP/DNS redirect can be used to block malware and unwanted content through popular third-party service providers or an agency server.

Reliable power circuitry supports 9-36 VDC input with ignition sense for direct integration into the vehicle’s power source. Dual cellular and dual Wi-Fi modules provide true segmented traffic flow of private and public data for fare collection, CAD/AVL data, camera log backhauls and passenger Wi-Fi access. ­­­

Features

  • Global models are available in both single and dual cellular options
  • Future-built with dual-core 880 MHz MIPS processor and PCIe 2.0 internal bus
  • Capable of segmenting private and public data communication across dual 600 Mbps LTE-Advanced Cat 11 or LTE-Advanced Pro Cat 12 cellular modules
  • High-speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN service and optional dual Wi-Fi radios
  • Cryptographic co-processor with secure key generation
  • Securely deploy, monitor and control devices with Digi Remote Manager®

Buy the Digi TX64 now

Back to top

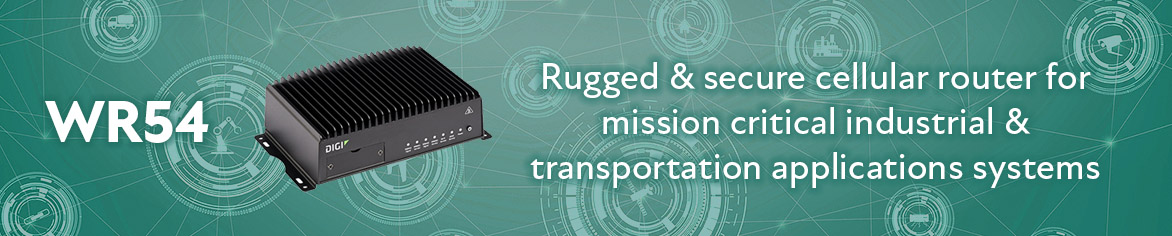

Digi WR54

The Digi WR54 is a versatile and high-performing router that is ideal for mission critical applications that require continuous connectivity, field longevity and edge computing. It provides secure routing and gateway functions across wired and wireless communication networks. Local private subnets are bridged across public networks to protect privacy and integrity.

The Digi WR54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications.  Designed to meet the demands of first responders, the Digi WR54 includes concurrent and independent dual cellular interfaces that prioritise critical communications. Its Industrial-grade design supports the most rugged conditions, including vibration and temperature changes. An embedded Python environment also enables quick adaptation to evolving system requirements.

Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of Digi WR54 security functions. A cryptographic co-processor protects particularly sensitive information.

Features

  • FirstNet Ready™ models Digi WR54 A146/A246 with single or dual cellular modules
  • Global models Digi WR54 A106/A206 with single or dual cellular radios
  • Future-built with dual-core 880 MHz MIPS processor and PCIe 2.0 internal bus
  • Segmented private vs. public data communication across dual 600 Mbps Cat 11 cellular modules
  • High-speed 867 Mbps 802.11ac Wi-Fi for WAN or LAN service and dual Wi-Fi radios in Digi WR54-A112
  • Cryptographic co-processor with secure key generation
  • Gigabit WAN/LAN Ethernet switch (4-port)
  • Zero-touch configuration using Digi Remote Manager®

Buy the Digi WR54 now

Back to top

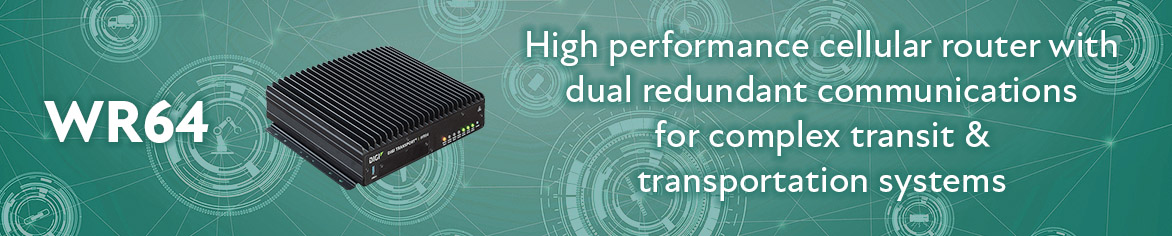

Digi WR64

Ideal for challenging transportation and mobile environments, the Digi WR64 is a dual cellular LTE-Advanced router with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated Wi-Fi access point, USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including GNSS and Bluetooth.

Passengers can access the Internet securely without any impact to onboard bus systems. Onboard systems retain priority, and any remaining bandwidth is made available to Internet traffic. Triple carrier aggregation on each cellular interface can be combined to deliver up to 1.2 Gbps to passengers.

A captive portal and splash page enable term acceptance, targeted messaging and agency branding. Standard HTTP/DNS redirect can be used to block malware and unwanted content through popular 3rd party service providers or an agency server.

Reliable powering circuitry supporting 9-36VDC input with ignition sense for direct integration into vehicles power source. Dual cellular and Wi-Fi modules provide true segmented traffic flow of private and public data for fare collection, CAD/AVL data, camera log backhaul and passenger Wi-Fi access.

Features

  • Segmented private vs. public data communication across dual 600 Mbps CAT11 cellular modules
  • Video and vehicle data offload over 1.7 Gbps 802.11ac Wi-Fi backhaul
  • Passenger Wi-Fi over 867 Mbps 802.11ac access point
  • Wired Gigabit Ethernet (4-port) for onboard systems
  • Future-built with powerful quad-core 1.91GHz, 64-bit CPU
  • Manage and control devices with Digi Remote Manager®, a web-based management tool for all Digi cellular routers and gateways
  • Cryptographic co-processor with secure key generation and storage

Buy the WR64 now

Back to top

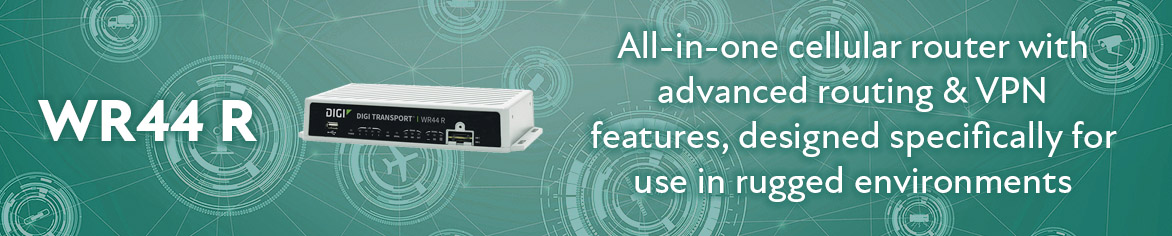

Digi WR44 R

The Digi TransPort® WR44 R is a rugged, all-in-one 4G LTE-Advanced mobile communications solution with true enterprise class routing, security and firewall. Featuring a heavy-duty cast aluminium enclosure, it offers a flexible interface design with an optional integrated Wi-Fi access point (with multi SSID), USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including GPS and CAN support.

The Digi TransPort® routers are ideal for transportation and mobile applications. Flexible power options include 9-36 VDC locking barrel or automotive Molex connectors for direct integration into vehicle applications. Also ideal for mobile applications is the cellular to Wi-Fi autoswitch feature, which uses the highest speed/lowest cost WAN network available.

All Digi TransPort® products offer an advanced routing, security and firewall feature set including stateful inspection firewall and integrated VPN. Enterprise class protocols incorporate BGP, OSPF and VRRP+. Advanced features allow the Digi TransPort to be used as a component of a PCI compliant network.

Features

  • Rugged, enterprise-class cellular routers with advanced dynamic routing, security and firewall features
  • Heavy-duty cast aluminum enclosure for reliable performance in rugged environments
  • Integrated 802.11 ac/a/b/g/n; a/n Wi-Fi access point (optional) and 4-port Ethernet switch
  • Flexible interfaces including GPS and CAN with DC power options
  • Cellular to Wi-Fi autoswitch feature automatically uses the highest speed/lowest cost WAN network available
  • Digi Remote Manager® platform for easy setup, mass configuration and management

Buy the Digi WR44 R now

Back to top

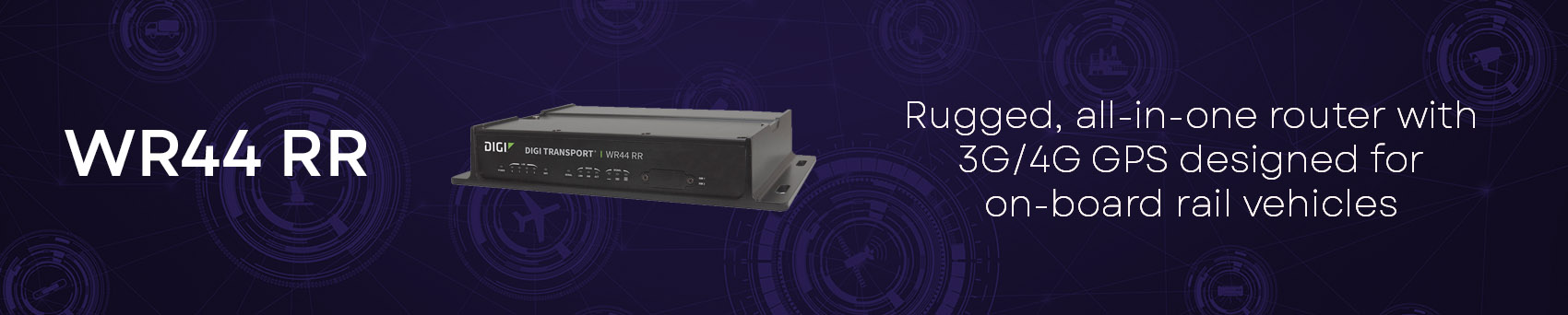

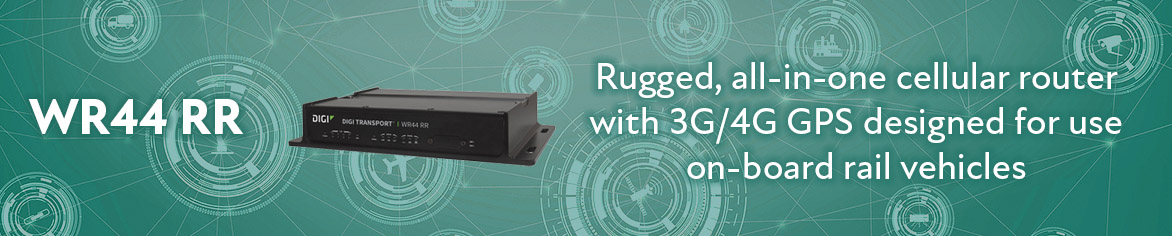

Digi WR44 RR

The Digi TransPort® WR44 RR is a rugged enterprise-class cellular router designed for rail environments. Its rail industry ratings, versatility, security features and performance make it ideal for applications such as Positive Train Control (PTC), wayside device communications and on-board passenger Internet access.

The Digi TransPort WR44 RR provides a reliable primary high speed cellular network connection or can act as a secure backup connection to the existing railroad network. It features a flexible communications design with 3G/4G multicarrier cellular, plus integrated Wi-Fi ac/b/g/n; a/n access point, serial and 4-port Ethernet switch. It also features full on-board train certifications, including AAR S-9401 and EN50155. Communications interfaces include hardened connectors, including M12 for Ethernet and serial, as well as TNC connectors for antenna connections.

Features

  • Heavy-duty enclosure and connectors designed for shock and high vibration environments
  • Enterprise-class routing, VPN and firewall capabilities
  • Optional integrated 802.11 ac/b/g/n; a/n Wi-Fi access point
  • Dual SIM for carrier redundancy
  • Cellular to Wi-Fi autoswitch
  • Full on-board train certs including AAR S-9401 and EN50155
  • Digi Remote Manager® platform for easy setup, mass configuration and management

Buy the Digi WR44 RR now

Back to top


Compare the Digi Tranport Routers Range

Ethernet
Ports
Interface
Options
PowerWi-FiPython
Prog.
Dual
SIM
Multi-Carrier
(3G/4G LTE)
Industry
TX544RS-232 (DB-9)9 – 36 VDCYes, Dual Wi-Fi modules (opt)YesYesYes, Dual Cellular (opt)Transportation, Traffic Management, Industrial, Energy
TX644RS-232 (DB-9)6 – 36 VDCDual 802.11 acYesYesYes, Dual Cellular Industrial, Energy, Transportation
WR544RS-232 (DB-9)9 – 36 VDC802.11 ac; dual Wi-Fi modules in WR54-A112YesYesYes, Dual Cellular (opt)Transportation, Traffic Management, Industrial, Energy
WR644RS-232 (DB-9)6 – 36 VDCDual 802.11 acYesYesYes, Dual Cellular Industrial, Energy, Transportation
WR44 R4RS-232 (DB-9) GPS9 – 36 VDC802.11 acYesYesYesIndustrial, Energy, Transportation
WR44 RR4RS-232 (DB-9) GPS9 – 36 VDC802.11 acYesYesYesIndustrial, Energy, Transportation

Back to top


Unsure Which Digi Transport Router is Right For You?

There is such a vast amount of transport routers out there for you to choose from, and it can be confusing. Every business is different; requirements must be assessed carefully so that the router can deliver what you need.

Here at Solid State Supplies, we pride ourselves on the products and services that we deliver to customers as tailored ‘solutions’ to their business needs’. Use the contact form to get in touch and speak to our of our team today.
